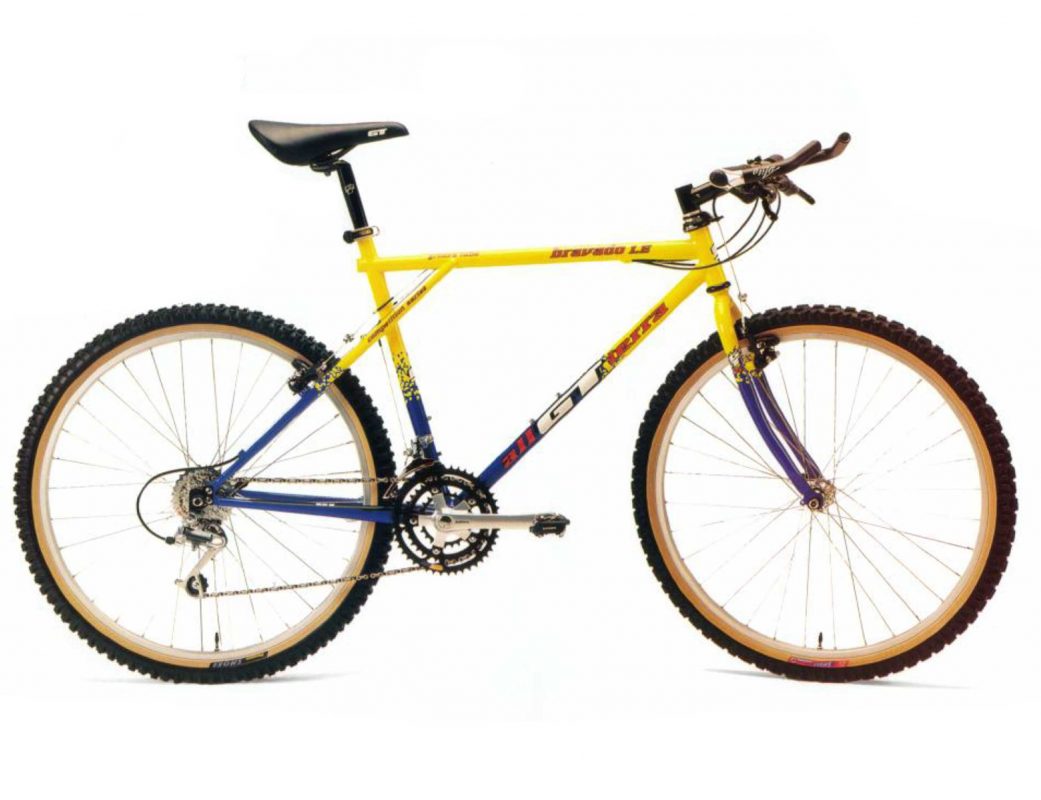

1993 GT Bravado LE
When it comes to intimidating the competition, the Bravado LE is the ticket. This aggressive bike delivers performance to all who ride it.
Description
The 1993 GT Bravado LE is a high-specification mountain bike built around a TIG pulse-welded True Temper GTX heat-treated double-butted chromoly frame featuring GT’s Triple Triangle design with even-tapered seatstays and chainstays. The fork is either GT’s own triple-butted “Bologna Lite” chromoly unit with 27mm tapered blades and an oversize 1-1/8″ steerer, or an optional Rock Shox MAG21 suspension fork depending on build spec.
Drivetrain duties fall entirely to Shimano Deore XT, including Rapid-Fire Plus shifters, 21-speed dual SIS derailleurs, and anatomically sized crankarms with SG-X chainrings. Mavic M-231 silver anodised rims laced to 26-inch Panaracer tires round out a build aimed squarely at capable trail riding. Six frame sizes accommodate a wide range of riders.
Technical specification
Geometry
- Sizes
- 14.5″, 16″, 18″,19”, 20″, 22”
Frame & Fork
- Frame material
- Aluminium, Chromoly
- Frame
- TIG Pulse welded, True Temoper GTX heat treated double butted chromoly tubing; Triple Triangle Design; Heat treated, even tapered seatstays and chainstays; 73mm Bottom Bracket Shell; Replaceable Heat-Treated Alloy Derailleur Hanger
- Fork
- GT “Bologna Lite” Full Chromoly Triple Butted 27mm tapered Blades with 1-1/8” Oversize Chromoly Butted Steer Tube OR Rock Shox MAG21
Drivetrain
- Crankset
- Shimano Deore XT with SG-X 46/36/26 Round Chainrings; Crank arms anatomically Sized
- Bottom bracket
- Shimano Cartridge
- Chain
- DID Supershift
- Freewheel
- Shimano Deore XT Cassette 12-28T
- Shifters
- Shimano Deore XT Rapid-Fire Plus
- Pedals
- Shimano SPD Clipless
- Derailleurs
- Shimano Deore XT 21-Speed Dual SIS
Wheels
- Rims
- Mavic M-231 Alloy 32h Silver Anodised
- Tires
- Panaracer New Dart (front), New smoke (Rear) 26X2.1 with Lite Tubes and Ritchey Rim Tape
- Spokes
- DT Double Butted 15/16/15 Gauge, Stainless Steel
- Hubs
- Shimano XT QR with rear Cassette 32H, Sealed mech
Cockpit & contact
- Handlebar
- Gt Alloy Bars, Anatomically Sized with Onza 1993 Alloy Cinch-Style L-Bend Bar-Ends
- Stem
- Gt Flip Flop III, Heat-Treated Thin Wall Chromoly, Anatomically Sized
- Grips
- GT New Racing ATB, Kraton Rubber
- Headset
- Tioga Alloy “Aheadset”, 1-1/8” Oversize
- Saddle
- GT new ATB racing with Hollow Chromoly Rails
- Seat post
- GT New Alloy 350mm
- Seatpost clamp
- GT New Alloy with new alloy/stainless steel QR
- Colour
- Team Scream
Brakes
- Brakes
- Shimano XT Low Profile Alloy Front and Rear Cantilevers with Multi-Condition Performance
- Brake levers
- Shimano Deore XT with Servo-Wave braking
Extras
Alloy Cable Hanger; Chainstay Protecter
