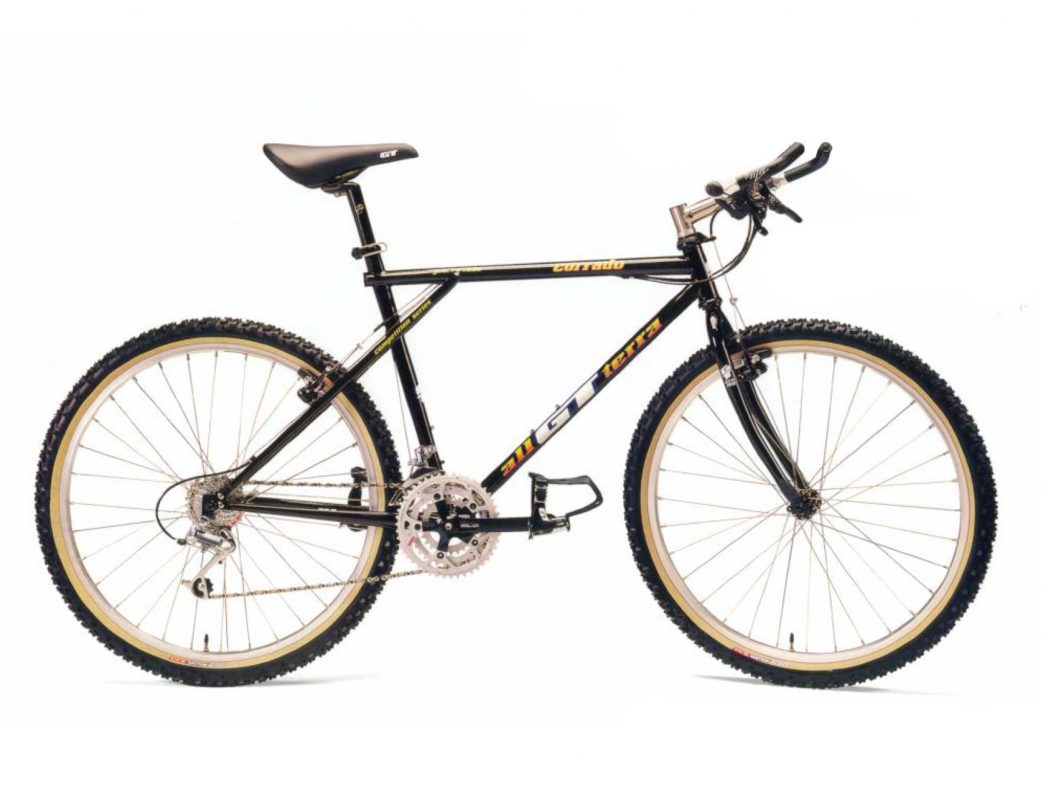

1993 GT Corrado
Once you set the Corrado in motion, your adrenalin will start to flow. Power the hills and attack the corners, as you pick off the competition one by one.
Description
The 1993 GT Corrado is a mountain bike built around a TIG pulse-welded True Temper GTX heat-treated double-butted chromoly main triangle paired with aluminium components and GT’s Triple Triangle design. Two fork options were offered: a GT “Bologna Lite” full chromoly triple-butted unit with 27mm tapered blades and 1-1/8″ oversize steer tube, or a RockShox Quadra suspension fork.
Drivetrain duties fall to a 21-speed Shimano groupset mixing Deore XT derailleurs, Deore LX crankset with SG-X 46/36/26 chainrings, and Deore DX Rapid-Fire Plus shifters. Araya TM-18 double-wall alloy rims wrapped in Ritchey Z-Max 26×2.1 tyres complete a capable all-round trail package. Six frame sizes accommodate a wide range of riders.
Technical specification
Geometry
- Sizes
- 14.5″, 16″, 18″,19”, 20″, 22”
Frame & Fork
- Frame material
- Aluminium, Chromoly
- Frame
- TIG Pulse welded, True Temoper GTX heat treated double butted chromoly tubing; Triple Triangle Design; 73mm Bottom Bracket Shell; Replaceable Heat-Treated Alloy Derailleur Hanger
- Fork
- GT “Bologna Lite” Full Chromoly Triple Butted 27mm tapered Blades with 1-1/8” Oversize Chromoly Butted Steer Tube OR Rock Shoxnew Quadra
Drivetrain
- Crankset
- Shimano Deore LX with SG-X 46/36/26 Round Chainrings; Crank arms anatomically Sized
- Bottom bracket
- Shimano Cartridge
- Chain
- DID Supershift
- Freewheel
- Shimano Deore DX Cassette 12-28T
- Shifters
- Shimano new Deore DX Rapid-Fire Plus
- Pedals
- Tioga Surefoot VI
- Derailleurs
- Shimano Deore XT 21-Speed Dual SIS
Wheels
- Rims
- Araya TM-18 double wall alloy 32h Silver Anodised
- Tires
- Ritchey Z-Max 26X2.1 with Lite Tubes
- Spokes
- DT Double Butted 15/16/15 Gauge, Stainless Steel
- Hubs
- Shimano LX QR with rear Cassette 32H, Sealed mech
Cockpit & contact
- Handlebar
- Gt Alloy Bars, Anatomically Sized with Onza 1993 Alloy Cinch-Style L-Bend Bar-Ends
- Stem
- Gt Flip Flop III, Heat-Treated Thin Wall Chromoly, Anatomically Sized
- Grips
- GT New Racing ATB, Kraton Rubber
- Headset
- Tioga Alloy “Aheadset”, 1-1/8” Oversize
- Saddle
- GT new ATB racing with Chromoly Rails
- Seat post
- GT New Alloy 350mm
- Seatpost clamp
- GT New Alloy with new alloy/stainless steel QR
- Colour
- Black
Brakes
- Brakes
- Shimano Deore DX Low Profile Alloy Front and Rear Cantilevers with Multi-Condition Performance
- Brake levers
- Shimano Deore DX with Servo-wave Braking
Extras
Alloy Cable Hanger; Chainstay Protecter
