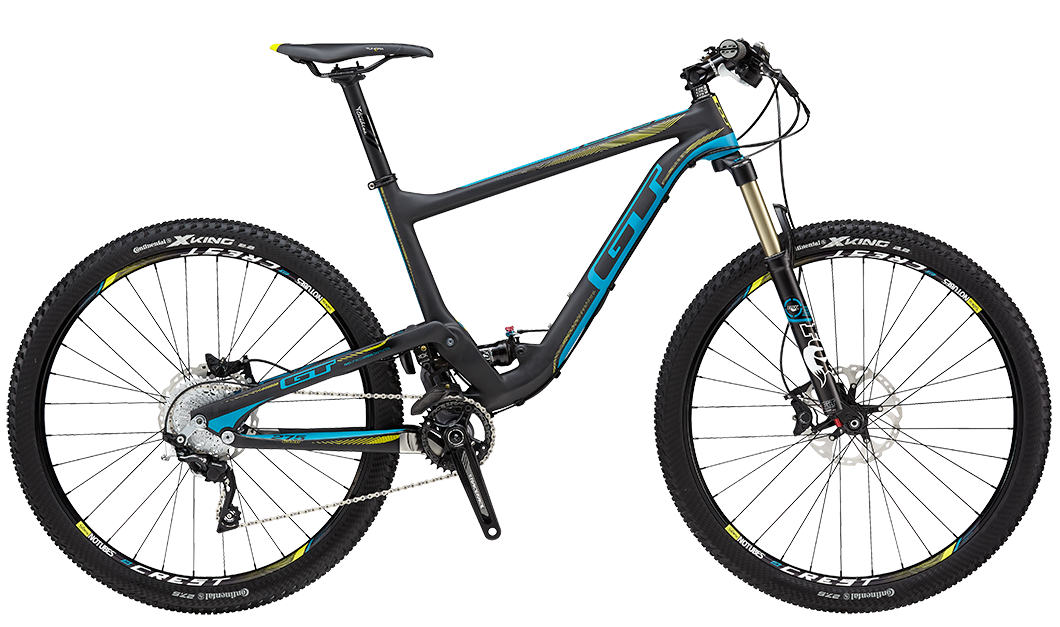

2014 GT Helion Carbon Pro
2014 GT Helion Carbon Pro is a 27.5" cross-country mountain bike built around an FOC Ultra Carbon frame with 110mm travel, Shimano XT 11-speed, and Fox 32 Float fork.
Description
The rebirth of XC. Before World Cups and when cross-country wasn’t about the recovery drinks and the nerdy gear, it was about the pure, simple joy of riding in the mountains. The 2015 Helion features progressive geometry to give you nimble, smile-jerking control, without losing efficient pedaling expected of a short travel bike.
KEY FEATURES
COR XC Philosophy, FOC Ultra Carbon Frame, 110mm travel, Angle Optimized Suspension, 27.5” specific, integrated tapered head tube 1” 1/8 to 1” ½ and 12 x 142mm Maxle Dropouts
Fox 32 Float 27.5 CTD FIT (110mm), 15QR, w/ Remote lockout and Rebound adjust, tapered alloy steerer
Fox Float rear shock with CTD Remote w/ Boost Valve, lock out & rebound adjust
Race Face Turbine crankset, 32T narrow-wide
Shimano XT Shadow+ 11spd, direct mount derailleur
Shimano XT Hydraulic Brakes w/ Metallic Pads, 180mm centerlock rotors (F&R)
Stans NoTubes Crest, ZTR Tubeless 32h w/ DT Swiss 240S centerlock (F: 15mm Thru Axle; R: 12x142mm Thru Axle)
Continental X-King 27.5x2.2” Tires
Technical specification
Geometry
- Sizes
- S, M, L, XL
Frame & Fork
- Frame
- COR XC Philosophy, FOC Ultra Carbon Frame, 110mm Travel Independent Drivetrain® 27.5 AOS Suspension System w/Forged Linkage, Pivots, 1 1/8"-1 1/2" Integrated Head Tube, and 12 x 142mm Maxle Dropouts
- Fork
- Fox 32 FLOAT 27.5 CTD Remote FIT, 110mm Travel, 15QR, w/ FIT Damper, Remote Lockout & Rebound Adjust, Tapered Alloy Steerer
Drivetrain
- Crankset
- RaceFace Turbine Basic, 32T Narrow Wide
- Bottom bracket
- RaceFace
- Chain
- KMC X10
- Freewheel
- Shimano Deore XT, CS-M771-10, 10-Speed, 11-36T
- Shifters
- Shimano Deore XT, SL-M780, Rapid Fire, Right Side Only
- Front derailleur
- e.thirteen XCX+ High Direct Mount
- Rear derailleur
- Shimano Deore XT Shadow Plus, Direct Mount, RD-M786-D, GS Cage
Wheels
- Rims
- Stan's NoTubes Crest, ZTR Tubeless, 32H
- Tires
- Continental X-King 27.5x2.2", Folding
- Spokes
- DT Competition, 1.8/1.6 Stainless, Black
- Hubs
- DT Swiss 350, Centerlock, 15x100mm Thru Axle
- Rear hub
- DT Swiss 350, Centerlock, 12x142mm Thru Axle
Cockpit & contact
- Handlebar
- RaceFace Turbine 35, 740mm Width, 10mm Rise
- Stem
- RaceFace Turbine 35, 1-1/8" Threadless, 0° Rise, 35mm Clamp, 80mm
- Grips
- GT Statement Single Lock-on Grips
- Headset
- Orbit C-40-ACB
- Saddle
- fizik Tundra2, Manganese Rail
- Seat post
- RaceFace Turbine, 31.6x375mm
- Seatpost clamp
- All Terra Alloy, 34.9mm
- Colour
- Matte Black
Brakes
- Brakes
- Shimano Deore XT, BR-M785 w/ Metallic Pad, 180mm SM-RT81 Centerlock IceTech Rotor
- Brake levers
- Shimano Deore XT, BL-M785
Suspension
- Rear shock
- Fox Racing Shox Float CTD Remote BV, 6.5"x1.5" Air Shock, w/ Rebound Adjust & Remote Lockout
