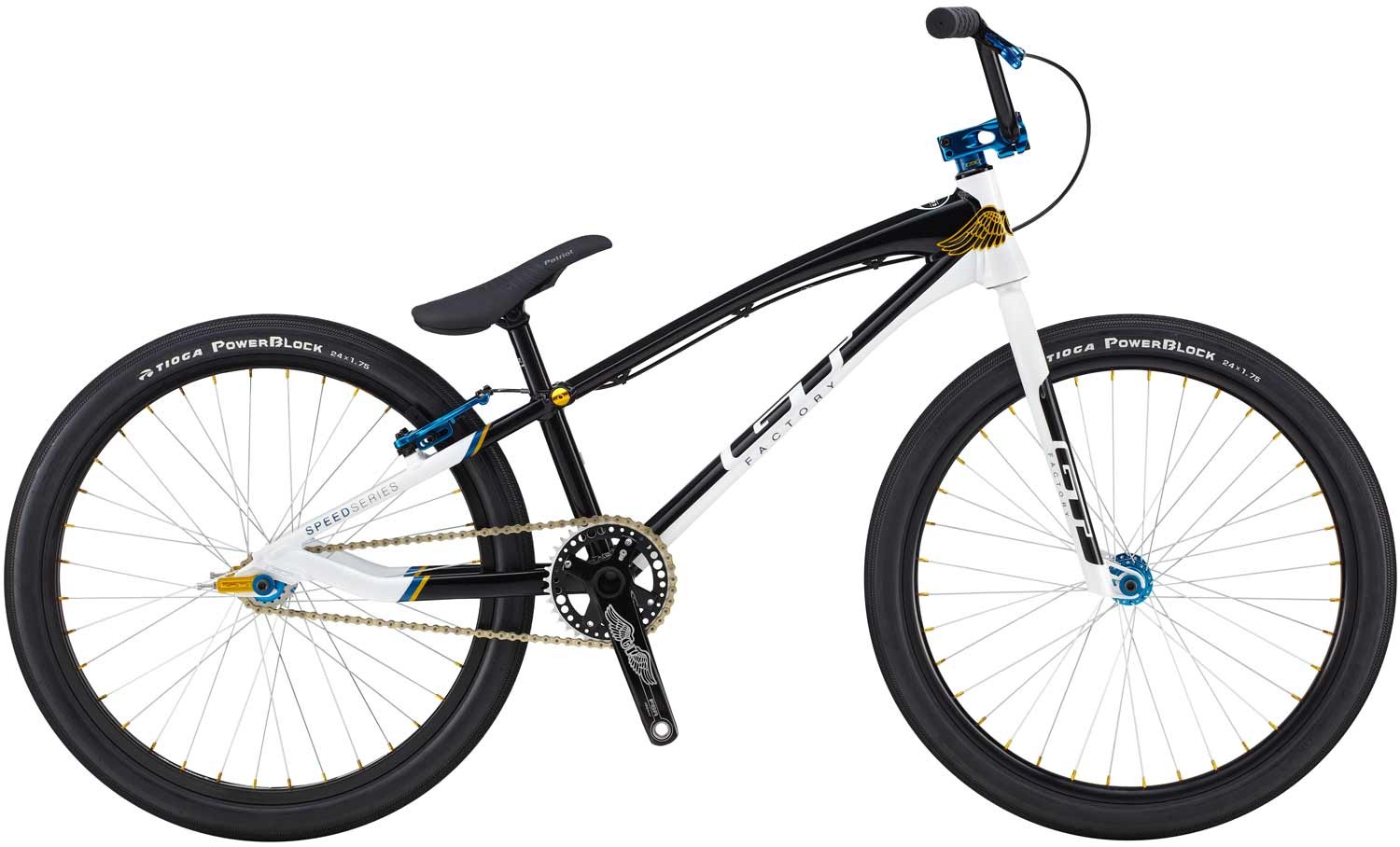

2014 GT Speed Series Pro 47
2014 GT Speed Series Pro 47 is a BMX race bike built around a hydroformed alloy frame with BB30 and a hollow-forged FSA Assault 36T crankset.
Description
Official GT Bikes website featuring GT Bicycles brand mountain, bmx, road, and urban bikes
Technical specification
Geometry
- Sizes
- 24" Wheel, 21.75" Top Tube
Frame & Fork
- Frame
- 2014 GT Speed Series BMX Race Design, Alloy Hydro Formed and Butted Speed Metal Tubes, Internal Quick Release Seat Clamp Wedge, CNC/Forged Reverse Style Dropouts, BB30, Taper 1-1/8"-1.5" Integrated H/T
- Fork
- GT BMX Pro Race, 100% Cr-Mo 1-1/8" Steerer, Tapered 31.8-28.6mm Blades, 365mm A/C, 3/8" Dropouts
Drivetrain
- Crankset
- FSA Assault GT Wing Logo Hollow Forged Alloy 2pcs, 175mm Arms, BB30 Cr-Mo Hollow Axle, 36T 7075 AL Chain Ring
- Bottom bracket
- BB30 Sealed Bearings
- Chain
- KMC Z610HX
- Pedals
- GT Slim Profile Large Size Platform, PP Material
Wheels
- Rims
- Alienation Deviant 32H Front, Alienation 440 36H Rear
- Tires
- Tioga Power Block 24" x 1.75" F/R
- Spokes
- 15G Stainless Steel Polished
- Hubs
- (F) GT Superlace Design, Sealed Bearings, 3/8" Axle, 36 Hole, w/Allen Thread-In Bolts, AL Washers, (R) GT Superlace 120 Point Cassette Design, CNC GT Logo, Low Flange, 2 x Sealed Bearings, 3/8" x AL Axle, 36 Hole, w/Allen Thread-In Bolts, AL Washers
Cockpit & contact
- Handlebar
- GT Cr-Mo Interceptor 5.5" x 27.5" Rise Taper Cross Bar, 11? Back x 3? Up
- Stem
- Promax 100% Cold Forged 1-1/8" Machined GT Logo On Front Cap, 50mm Ext
- Grips
- GT DOHC Design 140mm
- Headset
- FSA 1-1/8"-1.5" Taper Integrated Design, 45? x 45? Sealed Bearings
- Saddle
- SDG Patriot, I-Beam Kevlar w/Embossed GT Wing Graphic
- Seat post
- SDG I-Beam Micro Adj. AL 6061, 27.2mm
- Seatpost clamp
- GT Quick Release Integrated Internal Wedge
Brakes
- Brakes
- (R) Promax Cold Fodge Arms w/31mm Brake Pad Adj, 108mm Arms V-Brake
- Brake levers
- Promax V-Point Click Lever AL 2 Finger Lever w/Reach Adjust
