2016 GT BK Sig
2016 GT BK Sig is a chromoly BMX bike built around Brian Kachinsky's signature style, featuring a mid BB frame, seat stay U-brake mount, and Odyssey Springfield braking.
Description
Baked to perfection
Brian Kachinsky’s bikes were the inspiration for the design of the GT BK. Not only is the ride supremely smooth, with chromoly tubing to provide the ultimate in durability and response, but it’s got the looks to match his signature laid-back style. For those who prefer grinding on the right, there are also two models in the lineup that offer a left hand drive.

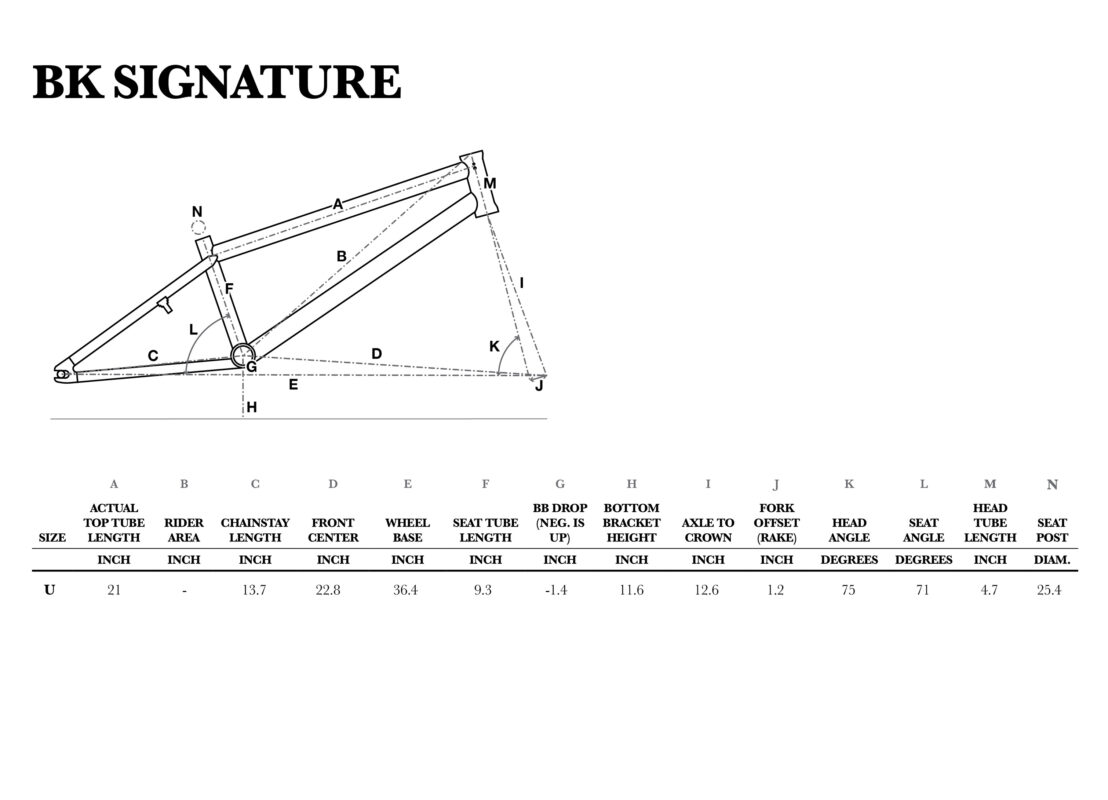

Geometry
Technical specification
Geometry
- Sizes
- 20" wheel / 21" top tube
Frame & Fork
- Frame
- GT BMX Design, 100% CR-MO Tubes, DT Gusset, MID BB , Seat Stay Mounted U-Brake, Full Removable Brake Hardware and Rotor Guides, Integrated 1-1/8" H/T, Odyssey Springfield Brake compatible
- Fork
- GT Trail Fork, 100% CR-MO One Piece CNC Steerer, Threaded Top Cap, 31.8- 28.6mm Tapered O.D. Blades, 3/8" Axle Dropouts
Drivetrain
- Bottom bracket
- MID Sealed Bearing
- Chain
- KMC Z410
- Pedals
- GT Low Profile Large Size Platform Design, PP Material, Boron Axle
Wheels
- Rims
- GT Design, Aluminum, Double Wall, 36 Hole
- Tires
- 20 X F/R 2.3 GT POOL STREET TREAD
- Hubs
- GT Low Flange 36 Hole Front And Rear, Sealed Bearings With 3/8" Cr-Mo Axle Front, 14mm x 165mm Cr-Mo Hollow Axle Rear, 9T One Pcs Driver Cassette, 7075 AL Axle Nuts Front
Cockpit & contact
- Handlebar
- 100% CR-MO H:9" (229mm), W:29" (737mm), w/ 19mm Crossbar, 3up,ﾠ11back
- Stem
- GT 100% Top Load CNC 1-1/8", 48mm Ext
- Grips
- Mushroom Style 147mm Soft Compound, w/ GT removable plug.
- Headset
- 1 1/8" Integrated Design 45 x 45 Degree Sealed Bearings
- Saddle
- Pivotal Padded
- Seat post
- Composite Pivotal 25.4 x 150mm
Brakes
- Brakes
- ODYSSEY Springfield Aluminum U-Brake
- Brake levers
- ODYSSEY Springfield Aluminum
