2016 GT Grade Alloy Claris
2016 GT Grade Alloy Claris is a gravel road bike built on a hydroformed alloy frame with a carbon fork, Shimano Claris shifting, and mechanical disc brakes.
Description
For journeys, not destinations
Setting out on your bike is never just about getting to your destination, it’s about the journey you take every time your wheels hit the ground. Loaded up on features that make long days in the saddle feel easy, like a low bottom bracket for added stability and extra tire clearance for knobbier rubber, the Grade Alloy will get you there, but prefers the long way around.

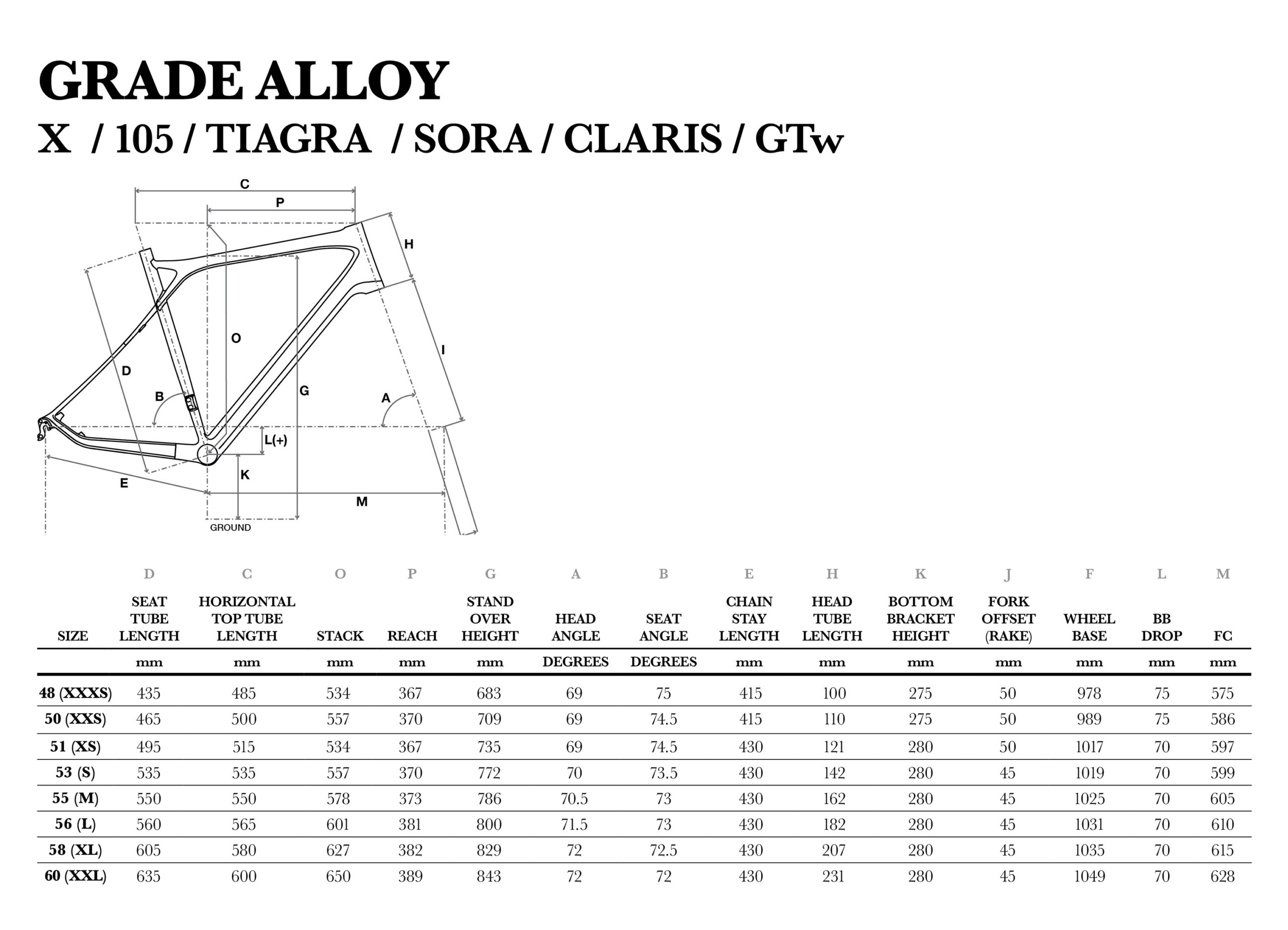

Geometry
Technical specification
Geometry
- Sizes
- 48, 50, 51, 53, 55, 56, 58, 60
Frame & Fork
- Frame
- Grade alloy frame with smooth welds, hydroformed (TT,DT), Tapered 1 1/8"-1 1/4" headtube, standard BB
- Fork
- Grade Carbon 1 1/8-1 1/4"" threadless alum steerer, disc specific
Drivetrain
- Crankset
- FSA Tempo Compact 50/34
- Bottom bracket
- Sealed Cartridge
- Chain
- KMC 8spd
- Freewheel
- Sun Race 8spd 12-25
- Shifters
- Shimano 2400 Claris Sti
- Pedals
- Low Profile Nylon w/ Toe Clips
- Front derailleur
- Shimano 2400 Claris
- Rear derailleur
- Shimano 2400 Claris 8spd
Wheels
- Rims
- Alex ATD470 disc specific road 22mm tall profile
- Tires
- Kenda Kwest 700 x 28 30tpi, wire bead
- Spokes
- 15g stainless steel
- Hubs
- F: Formula 6 bolt disc sealed 28h; R: Formula 6 bolt disc sealed casette 32h
Cockpit & contact
- Handlebar
- New GT DropTune Super Light double butted 6061 alloy bar with 16degree flair
- Stem
- GT Design 3D forged 6061, 4 bolt face plate
- Grips
- Velo Cork
- Headset
- Integrated TH sealed bearing
- Saddle
- GT Grade saddle
- Seat post
- One bolt aluminun
- Seatpost clamp
- New Alloy blk ano
Brakes
- Brakes
- Tektro Mechanical Disc brake, 160mm rotor
- Brake levers
- Shimano 2400 Claris Sti
