2016 GT Transeo 3 20
2016 GT Transeo 3 20 is a 6061 alloy urban mountain bike with a 75mm SR Suntour suspension fork, hydraulic disc brakes, and an 8-speed Shimano Acera drivetrain.
Description
Cover all the bases
There are a lot of different reasons to ride a bike. Whether you’re looking to stay fit, have fun exploring your city, or keep it green while getting errands done, the Transeo blends all of your needs into one sleek ride. With a suspension fork and space for racks, this bike is ready to cover all of the bases.

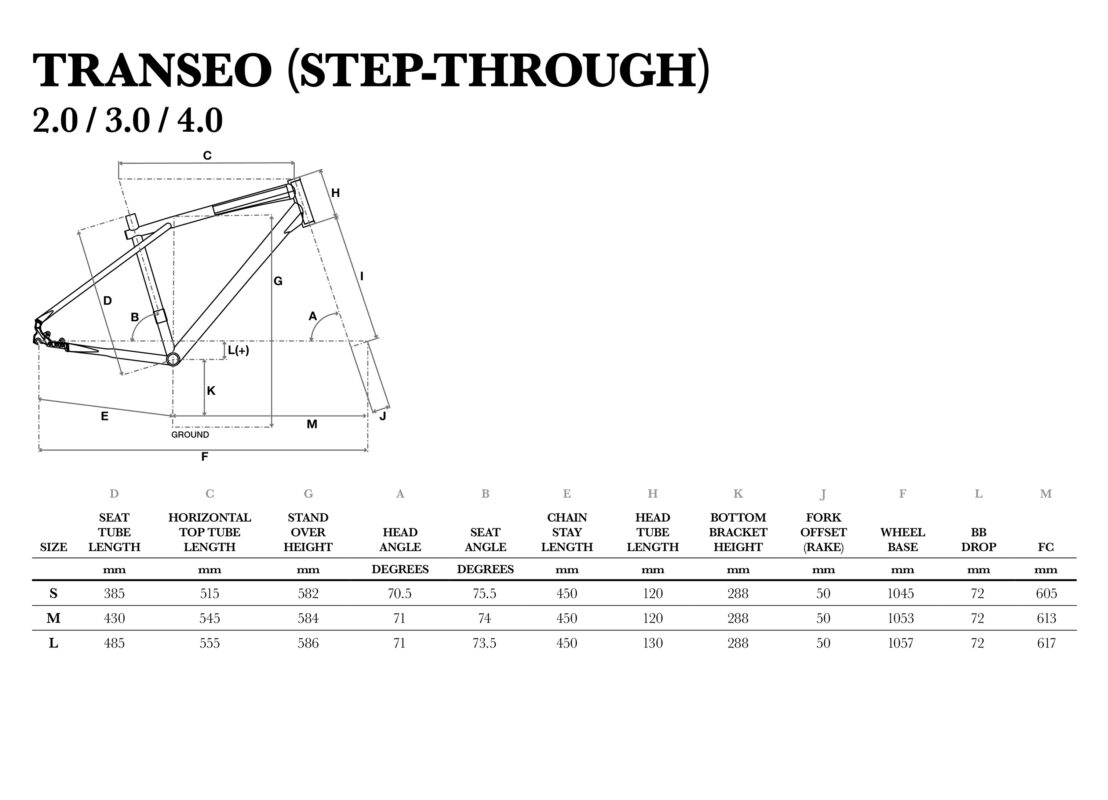

Geometry
Technical specification
Geometry
- Sizes
- S, M, L
Frame & Fork
- Frame
- NEW GT Transeo Triple Triangle 6061 series alloy, smooth welded, and hydroformed (TT,DT), forged drop-outs, chainstay disc mounts, all utility braze ons
- Fork
- SR Suntour NVX-DS HLO 75mm travel, pre-load adjust, Hydraulic Lockout, disc specific, fender mounts
Drivetrain
- Crankset
- Shimano M311 Octalink 48/38/28
- Bottom bracket
- Cartridge sealed
- Chain
- KMC HG-40
- Freewheel
- Sunrace CSM55 8spd casette 11-32t
- Shifters
- Shimano Acera 8spd Rapid Fire
- Pedals
- High Impact nylon Comfort
- Front derailleur
- Shimano FD M191
- Rear derailleur
- Shimano Acera RD-M360 8spd
Wheels
- Rims
- Jalco JD200 Double Wall Alloy, 32h
- Tires
- 700x35c Innova LandTracker w/ puncture protection and reflective sidewalls
- Spokes
- Stainless steel 14g
- Hubs
- F: All Terra Alloy 32h Disc Specific; R: All Terra Alloy 32h Freehub Disc Specific
Cockpit & contact
- Handlebar
- GT Type R flat riser bar, 31.8x640mm
- Stem
- All New 3D forged GT alloy stem
- Grips
- GT Wings
- Headset
- Kore 1B-1 1 1/8" Threadless, Zerostack
- Saddle
- GT All Terra bio morphic
- Seat post
- GT All Terra two bolt alloy
- Seatpost clamp
- GT All Terra cold forged clamp QR
Brakes
- Brakes
- Shimano BR-M355, Hydraulic Disc, W/ 160mm Rotor SM-RT56
- Brake levers
- Shimano Hydraulic Disc Brake Lever
