Description
Never before has a high-tech road bike been so capable on low-tech roads. The Grade is ready for everything, from freshly-paved switchbacks to the gravel roads– and everything in between. The Grade knows no bounds.

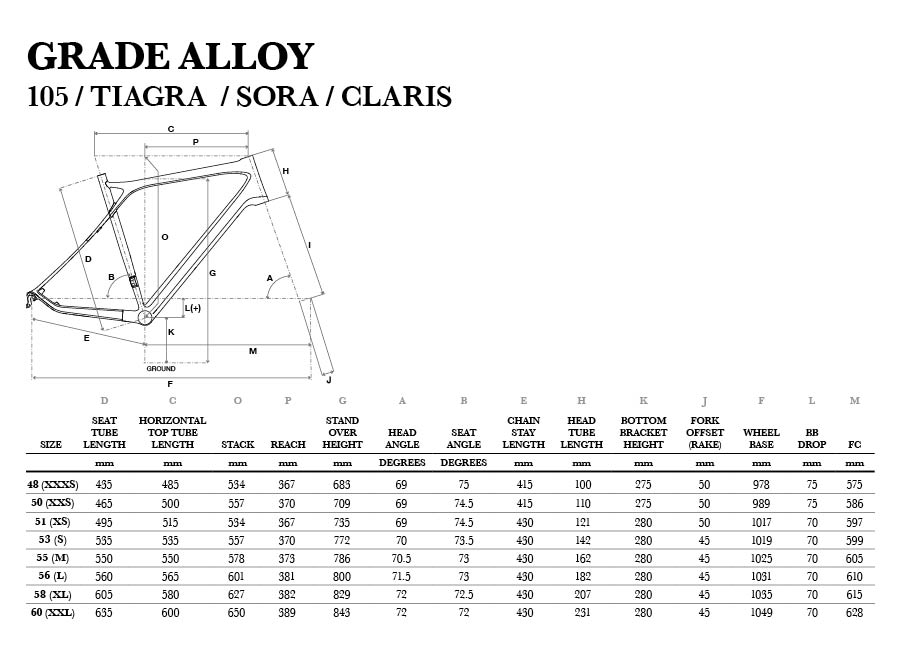

Geometry
Technical specification
Geometry
- Sizes
- 48, 50, 51, 53, 55, 56, 58, 60
Frame & Fork
- Frame
- Grade alloy frame with smooth welds, hydroformed (TT,DT), Tapered 1 1/8" to 1 1/4" headtube, standard BB
- Fork
- Grade Carbon 1 1/8 to 1 1/4" threadless alum steerer, disc specific
Drivetrain
- Crankset
- FSA Vero Compact 50alloy/34alloy
- Bottom bracket
- Sealed Cartridge
- Chain
- KMC X11
- Freewheel
- Shimano 105 11-speed 11-32
- Shifters
- Shimano 105 STI 11-speed
- Pedals
- Low Profile Nylon w/ Toe Clips
- Front derailleur
- Shimano 105
- Rear derailleur
- Shimano 105
Wheels
- Rims
- Alex ATD470 disc specific road 22mm tall profile
- Tires
- (F&R;) Schwalbe Road Cruiser K-Guard 700C
- Hubs
- (F&R;) Formula Ultralight 6 bolt disc sealed 28h
Cockpit & contact
- Handlebar
- New GT DropTune Super Light double butted 6061 alloy bar with 16 degree flair
- Stem
- GT Design 3D forged 6061, 4 bolt face plate 7? Rise, 31.8mm Clamp
- Grips
- Velo Cork
- Headset
- Integrated TH sealed bearing
- Saddle
- GT Grade saddle
- Seat post
- One Bolt Aluminun
- Seatpost clamp
- New Alloy blk ano
Brakes
- Brakes
- (F&R;) TRP HY/RD Hydraulic disc road brake, 160mm rotor
- Brake levers
- Shimano 105 STI 11-speed
Suspension
- Rear shock
- N/A
