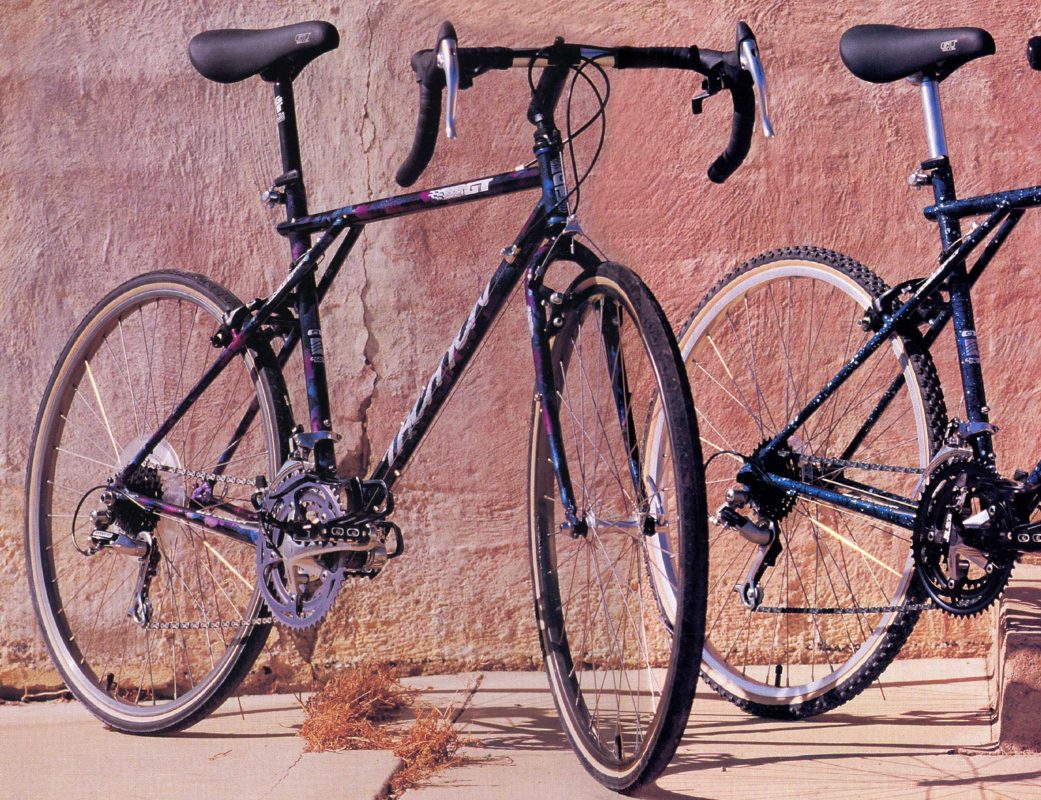

1992 GT Tachyon
GT‘s crossover bicycles are aimed at the enthusiast who is looking for one bike for all terrains. With their innovative frame design and componentry selection, these bikes equally at home on or off the road. The 700D wheels combine the advantages of road tire size with the strength of off-road rims to create true crossover performance.
Description
The 1992 GT Tachyon is a crossover-oriented hybrid bicycle built around GT’s Triple Triangle frame design executed in Tange Infinity double-butted tubing, with internal cable routing and a full complement of water bottle bosses. The fork, a GT/Spinner unicrown unit with butted chromoly blades and adjustable-offset forged dropouts, includes lowrider bosses for loaded touring use.
Braking is handled by a DiaCompe 986 front cantilever paired with a 993 rear U-brake, while the drivetrain pairs a SunTour XC-Pro Accushift rear derailleur with an SR Cross-series crankset running a 52/42/32T triple chainring setup. The 700D wheel size and semi-slick GT/IRC tires suit mixed-surface commuting and light off-road riding.
Technical specification
Geometry
- Sizes
- 16", 18", 20", 22"
Frame & Fork
- Frame
- GT Triple Triangle crossover design with Tange Infinity double butted tubing; reinforced head tube; internal cable routing; external butted seat tube; forged dropouts: full eyelets; Triple water bottle bosses
- Fork
- GT/Spinner unicrown crossover design with butted chromoly steer tube, 1" chromoly blades, forged dropouts with adjustable offset, low rider bosses, two eyelets
Drivetrain
- Crankset
- SR Cross series round chainrings 52/42/32T; alloy crank arms, anatomically sized
- Bottom bracket
- Japanese sealed mech
- Chain
- SunTour XC-Pro
- Freewheel
- SunTour XC-Comp 12-30T, 7 speed
- Shifters
- SunTour Command Accushift
- Derailleurs
- SunTour XC-Pro Accushift
Wheels
- Rims
- GT/Araya RM-20 700D grey anodised
- Tires
- GT/IRC 700Dx1.4 semi bald
- Spokes
- 14G stainless steel
- Hubs
- SunTour X-1 alloy QR with rear Cassette
Cockpit & contact
- Handlebar
- SR alloy, fat drop, anatomically sized
- Stem
- GT/H.L. Crossover Flip Flop chromoly/alloy, anatomically sized with DiaCompe alloy cable hanger
- Grips
- Black tape
- Headset
- Ritchey Logic triple sealed
- Saddle
- GT GelCel Racing
- Seat post
- GT/True Temper chromoly, 350mm
- Seatpost clamp
- GT chromoly with rubber cover
- Colour
- Midnight Aurora
Brakes
- Brakes
- DiaCompe 986 low profile front cantilever with 993 rear U-brake and GT cable crosser
- Brake levers
- DiaCompe aero BRS with black rubber hoods
Extras
SunTour cable adjuster; Chain stay protector
