1993 GT Ricochet
Hammering the single track, rail the corners and fly down the straights like never before. The Ricochet is like no other bike you've ever ridden.
Description

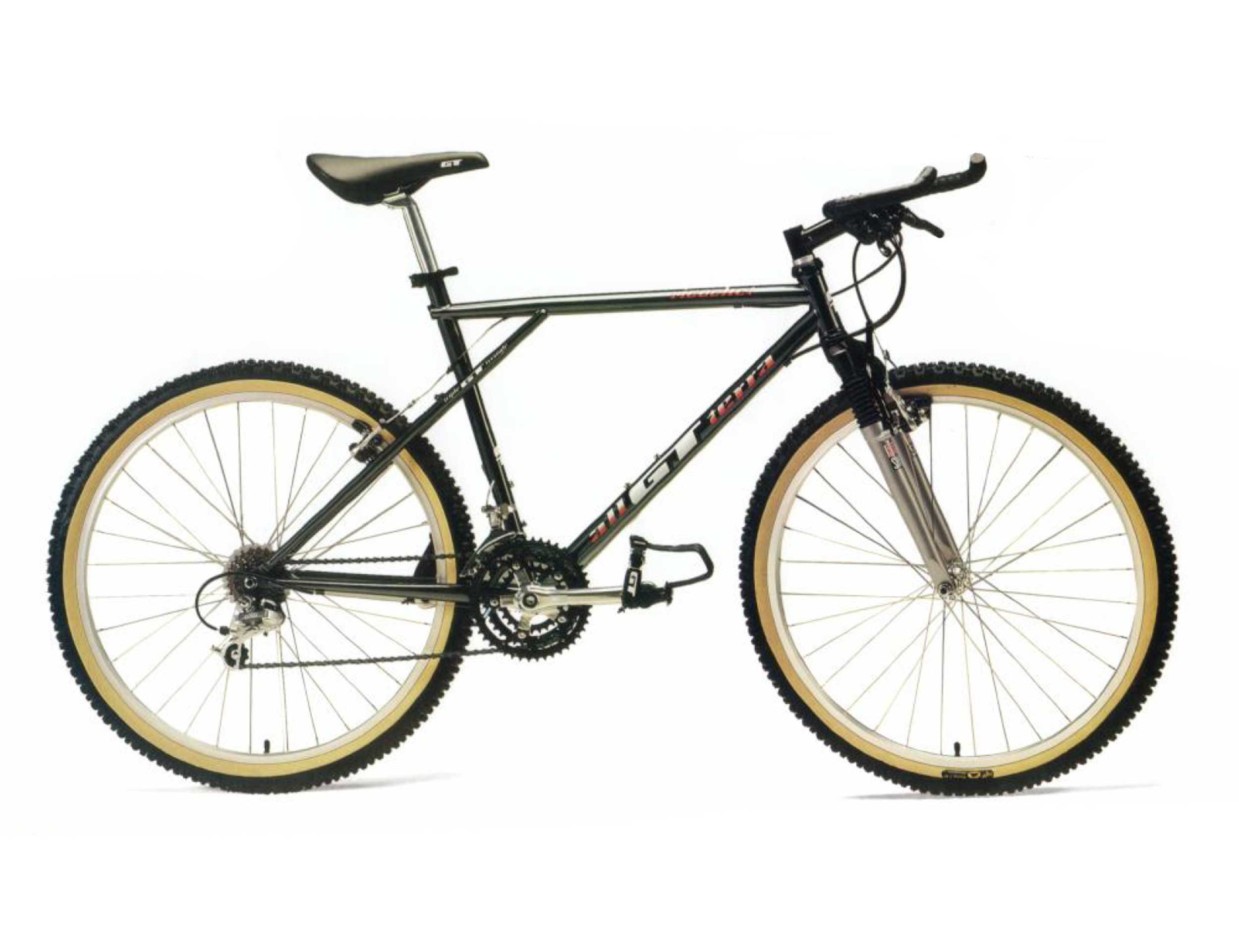

The 1993 GT Ricochet is an aluminium alloy mountain bike built around a TIG pulse-welded 7005 series frame with GT’s Triple Triangle design and a heat-treated replaceable derailleur hanger. A Rock Shox Quadra fork handles front suspension duties, while the 1-1/8″ oversize Tioga Aheadset adds rigidity to the steering assembly.
Drivetrain components are drawn from Shimano’s Altus and Exage LT lineup, delivering a 21-speed Dual SIS setup with Rapid-Fire Plus shifters and a 46/36/26 chainring combination. Double-wall Araya TM-18 rims laced to 26-inch Onza Porcupine II tires complete the package. Six frame sizes ranging from 14.5″ to 22″ ensure a broad fit across rider sizes.
Technical specification
Geometry
- Sizes
- 14.5″, 16″, 18″,19”, 20″, 22”
Frame & Fork
- Frame material
- Aluminium
- Frame
- TIG Pulse welded, Triple Triangle Design Aluminium alloy 7005 heat treated tubing; 73mm Bottom Bracket Shell; Replaceable Heat-Treated Alloy Derailleur Hanger
- Fork
- Rock Shox Quadra
Drivetrain
- Crankset
- Shimano New Altus with SG-X 46/36/26 Round Chainrings; Crank arms anatomically Sized
- Bottom bracket
- Shimano Cartridge
- Chain
- DID Super Lanner
- Freewheel
- Shimano Altus Cassette 12-28T
- Shifters
- Shimano Altus A10 Rapid-Fire Plus
- Pedals
- ATB with steel cage
- Derailleurs
- Shimano Exage LT 21-Speed Dual SIS
Wheels
- Rims
- Araya TM-18 double wall alloy 32h Silver Anodised
- Tires
- Onza Porcupine II 26X2.1
- Spokes
- Stainless Steel
- Hubs
- Shimano Exage QR with rear Cassette 32H, Sealed mech
Cockpit & contact
- Handlebar
- Gt new ergo alloy with multiple hand positions, atomically sized
- Stem
- Gt Flip Flop III, Heat-Treated Thin Wall Chromoly, Anatomically Sized
- Grips
- GT New Racing ATB, Kraton Rubber
- Headset
- Tioga Alloy “Aheadset”, 1-1/8” Oversize
- Saddle
- GT new ATB racing
- Seat post
- GT New Alloy 350mm
- Seatpost clamp
- GT New Alloy with new alloy/stainless steel QR
- Colour
- Pearl Slate, Tequila Sunrise
Brakes
- Brakes
- Shimano Altus A20 Low Profile Alloy Front and Rear Cantilevers with Multi-Condition Performance
- Brake levers
- Shimano Altus A10
Extras
Chainstay Protecter
