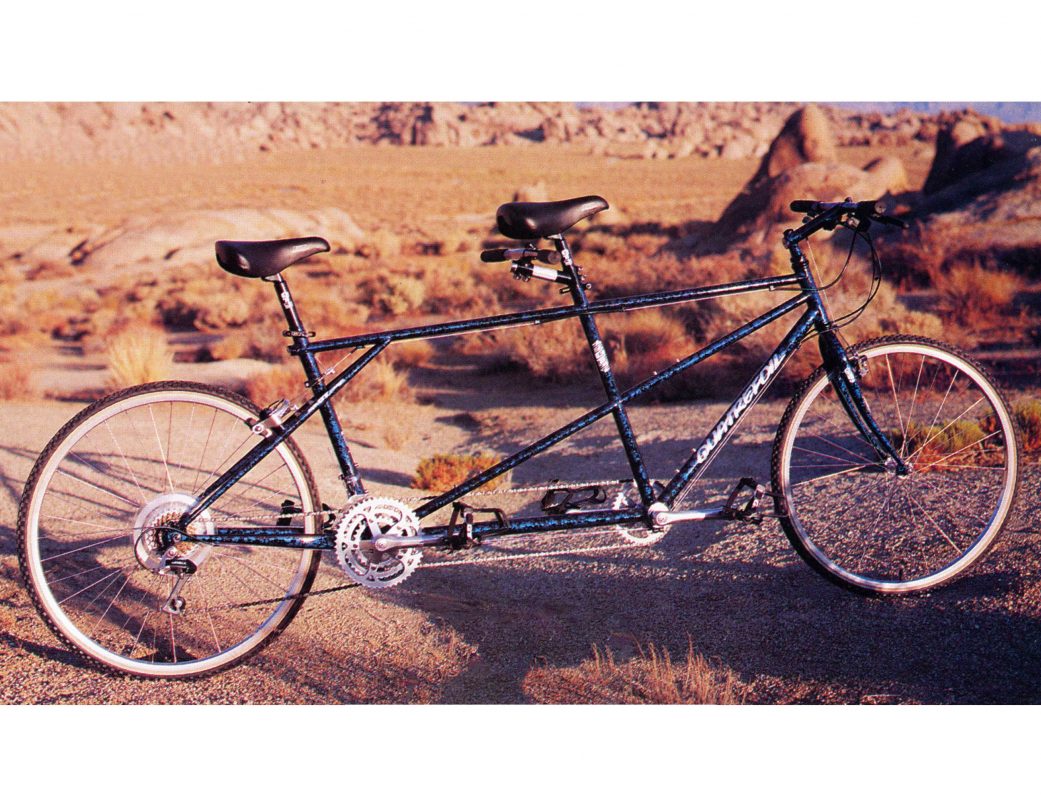

1992 GT Quatrefoil
1992 GT Quatrefoil is a chromoly tandem road/hybrid bike built on GT's Triple Triangle frame with Shimano 300LX derailleurs and a 50/40/30T Sugino crankset.
Description
The 1992 GT Quatrefoil is a chromoly tandem road/hybrid bicycle built around GT’s Triple Triangle tandem frame design using Tange MTB double-butted chromoly tubing. The 1-1/8″ oversize reinforced head tube and matching GT unicrown fork with tapered chromoly blades lend the frame added rigidity suited to the demands of two-rider use. Four sets of water bottle bosses and full rack braze-ons make it a practical touring option.
Drivetrain duties fall to a Sugino tandem crankset with anatomically sized arms and a 50/40/30T chainring setup, shifted via Shimano 500LX RapidFire Plus levers and 300LX derailleurs. GT/Araya RM-20 700D rims carry GT/IRC 700×1.4 dual-purpose tires, and gender-specific saddles are fitted front and rear.
Technical specification
Geometry
- Sizes
- 20"x18", 19"x17" 18"x15"
Frame & Fork
- Frame material
- Chromoly
- Frame
- GT Triple Triangle Tandem design; Tange MTB double butted chromoly; direct lateral design; 1-1/8" oversize reinforced head tube; four sets of water bottle bosses; full rack braze-ons
- Fork
- GT unicrown with 1-1/8" oversize butted chromoly steer tube; 1-1/8" tapered chromoly blades with forged dropouts
Drivetrain
- Crankset
- Sugino Tandem alloy round chainrings 50/40/30T; alloy crank arms, anatomically sized
- Bottom bracket
- Japanese sealed mech
- Chain
- Shimano Deore DX HyperGlide
- Freewheel
- Shimano HyperGlide cassette 12-30T, 7 speed
- Shifters
- Shimano 500LX RapidFire Plus STI
- Derailleurs
- Shimano 300LX
Wheels
- Rims
- GT/Araya RM-20 700D silver anodised, 36H
- Tires
- GT/IRC 700Dx1.4 dual purpose
- Spokes
- 14G stainless steel
- Hubs
- Shimano 500LX alloy QR with rear cassette, 36H
Cockpit & contact
- Handlebar
- GT chromoly, flat tapered
- Stem
- Front: GT pierced design chromoly with internal cable routing, anatomically sized. Rear: Chromoly stoker
- Grips
- GT Design anatomical
- Headset
- Tioga 1-1/8" oversize, triple sealed
- Saddle
- GT racing; mens front / ladies rear
- Seat post
- Alloy micro adjust, 300mm
- Seatpost clamp
- GT heat treated alloy clamp and QR lever
- Colour
- Black, Teal Fission
Brakes
- Brakes
- Shimano alloy low profile front cantilever with Shimano rear alloy U-brake and GT cable crosser
- Brake levers
- Shimano 500LX 4 finger
Extras
Chain stay protector
