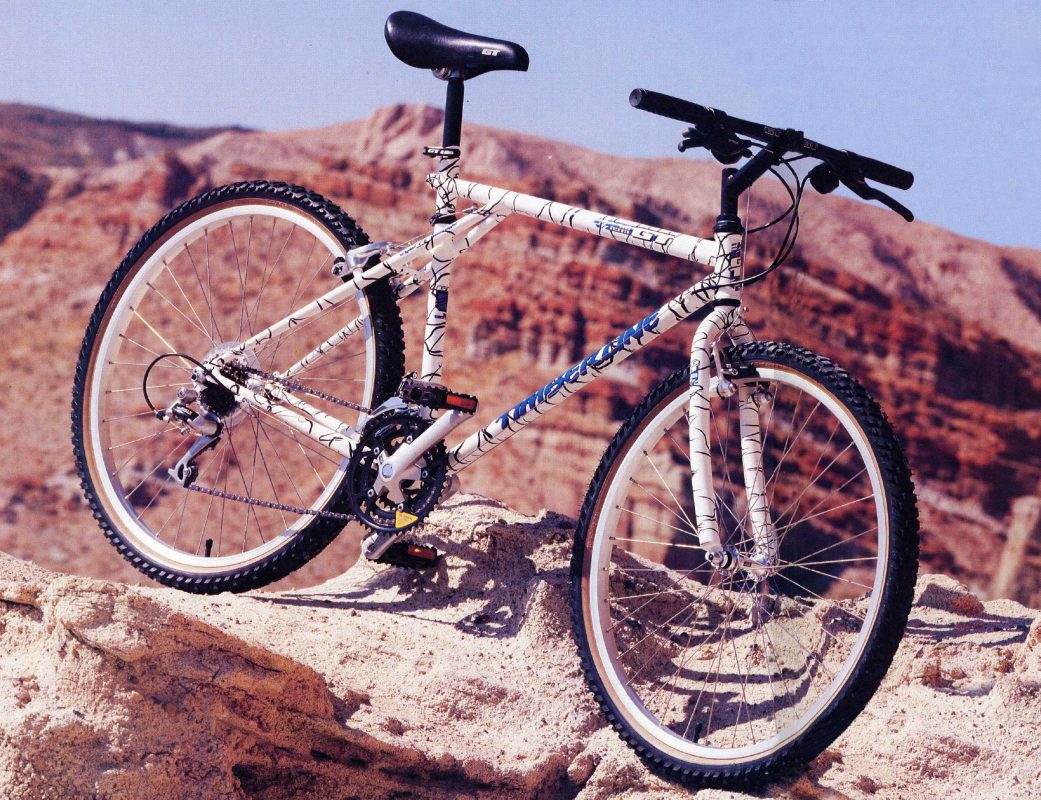

1992 GT Timberline
The 1992 Timberline is designed for the all around enthusiast looking for years of endless exploration.
Description
The 1992 GT Timberline is an entry-to-mid-level mountain bike built around GT’s Triple Triangle chromoly frame, which uses True Temper main tubes, a reinforced 1-1/8″ oversize head tube, internal cable routing, and tapered seat stays with forged dropouts. A matching GT unicrown fork with chromoly blades and a butted 1-1/8″ steerer completes the front end.
Drivetrain duties fall to a Shimano 300LX crankset with BioPace chainrings in a 48/38/28T configuration, paired with Shimano 500LX derailleurs and Rapid-Fire STI shifters. Araya VP-20 silver-anodized alloy rims in 26×1.5 wrap the 26-inch wheels, and a rear U-brake setup with GT cable crosser handles stopping. Five frame sizes cover a broad range of riders.
Technical specification
Geometry
- Sizes
- 14.5", 16", 18", 20", 22"
Frame & Fork
- Frame material
- Chromoly
- Frame
- GT Triple Triangle design with True Temper chromoly main tubes; reinforced head tube; internal cable routing; tapered seat stays; forged dropouts: double set of water bottle bosses
- Fork
- GT unicrown with 1-1/8" butted steer tube, 1-1/8" chromoly blades, safety dropouts
Drivetrain
- Crankset
- Shimano 300LX BioPace chainrings 48/38/28T; alloy crank arms anatomically sized
- Bottom bracket
- Japanese sealed mech
- Chain
- Shimano HG50 HyperGlide
- Freewheel
- Shimano HyperGlide Cassette, 12-28T, 7 speed
- Shifters
- Shimano 500LX Rapid-Fire STI
- Derailleurs
- Shimano 500LX
Wheels
- Rims
- Araya VP-20 alloy 26x1.5 silver anodised
- Tires
- 26x1.95 dual purpose
- Spokes
- 14G stainless steel
- Hubs
- Shimano 500LX QR with rear cassette
Cockpit & contact
- Handlebar
- Flat tapered anatomically sized
- Stem
- GT -II chromoly with internal cable routing, anatomically sized
- Grips
- Foam MTB
- Headset
- Oversize 1-1/8" sealed mech
- Saddle
- GT racing
- Seat post
- Alloy 300mm
- Seatpost clamp
- GT alloy QR
- Colour
- Daktari White, Evergreen
Brakes
- Brakes
- Shimano alloy low profile front cantilever with Shimano alloy rear U-brake and GT cable crosser
- Brake levers
- Shimano 500LX 3 finger
Extras
Chain stay protector
