1994 GT Timberline
1994 GT Timberline mountain bike features a chromoly Triple Triangle frame, GT Unicrown fork, and Shimano Alivio 21-speed drivetrain for trail riding.
Description

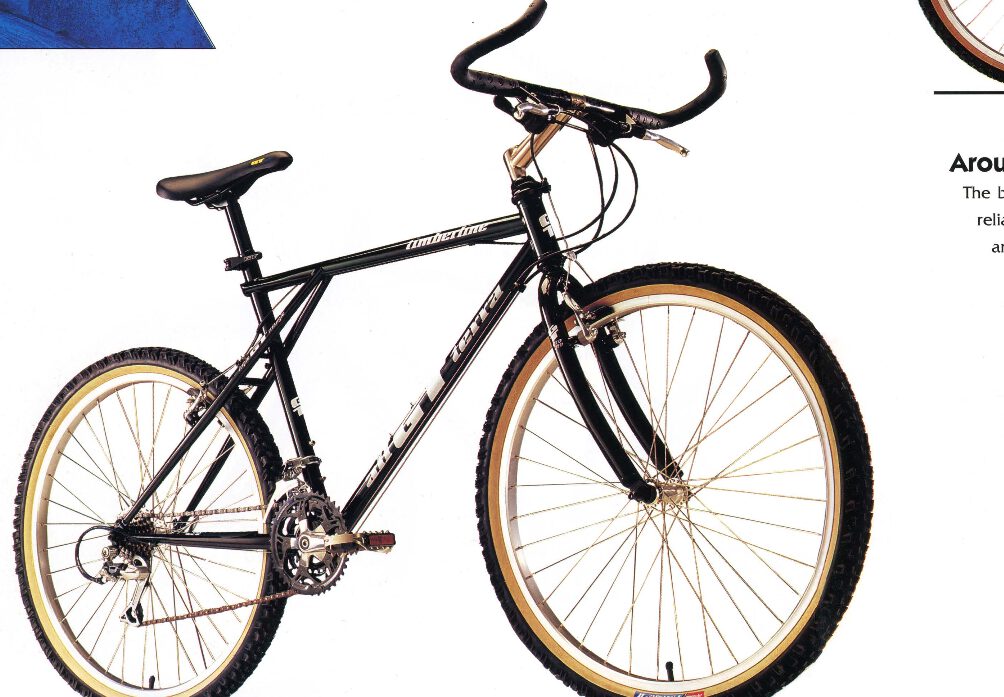

The 1994 GT Timberline is a chromoly-framed mountain bike built around GT’s Triple Triangle design, with TIG pulse-welded main tubes and stays forming a notably stiff and tidy rear triangle. The fork is a GT Unicrown unit with 1-1/8″ oversize chromoly blades and a matching oversized headset, lending the front end more rigidity than standard setups of the era.
Drivetrain duties fall to a full Shimano Alivio Upgrade Edition groupset, delivering 21 speeds through Rapid-Fire Plus thumb shifters. Araya AP-21 silver-anodized alloy rims carry Tioga Psycho II 26×1.95 tires, and Shimano Alivio cantilever brakes handle stopping. Five frame sizes make the Timberline accessible to a wide range of riders.
Technical specification
Geometry
- Sizes
- 14.5",16",18",20",22"
Frame & Fork
- Frame material
- Chromoly
- Frame
- GT Triple Triangle Design, Tig Pulse Welded, Chromoly Main Tubes and Stays, 73mm Bottom Bracket Shell
- Fork
- GT Unicrown with 1-1/8" Oversize Steer Tube and 1-1/8" Chromoly Blades with Chisel Cut
Drivetrain
- Crankset
- Shimano Alivio Upgrade Edition 42/34/24 HyperDrive-C with Anatomically Sized Arms
- Bottom bracket
- Shimano Cartridge
- Chain
- Shimano HyperGlide
- Freewheel
- Shimano Alivio 11-28 7-Speed
- Shifters
- Shimano Alivio Upgrade Edition Rapid-Fire Plus 7-Speed Dual SIS
- Pedals
- ATB with Steel Cage and Chromoly Axles
- Derailleurs
- Shimano Alivio Upgrade Edition 21-Speed
Wheels
- Rims
- Araya AP-21 Alloy 26x1.50, Silver Anodized
- Tires
- Tioga Psycho II 26x1.95
- Spokes
- 14G Stainless Steel
- Hubs
- Shimano Alivio Alloy QR with Rear Cassette, 36H
Cockpit & contact
- Handlebar
- GT Ergo with Multiple Hand Positions, Anatomically Sized
- Stem
- GT ATB Chromoly, Anatomically Sized
- Grips
- GT Long Type, Kraton
- Headset
- 1-1/8" Oversize, Sealed Mech
- Saddle
- GT Gel Lite
- Seat post
- Alloy Micro-Adjust
- Seatpost clamp
- GT Alloy QR
- Colour
- Evergreen, Hydro Blue
Brakes
- Brakes
- Shimano Alivio Cantilevers
- Brake levers
- Shimano Alivio
