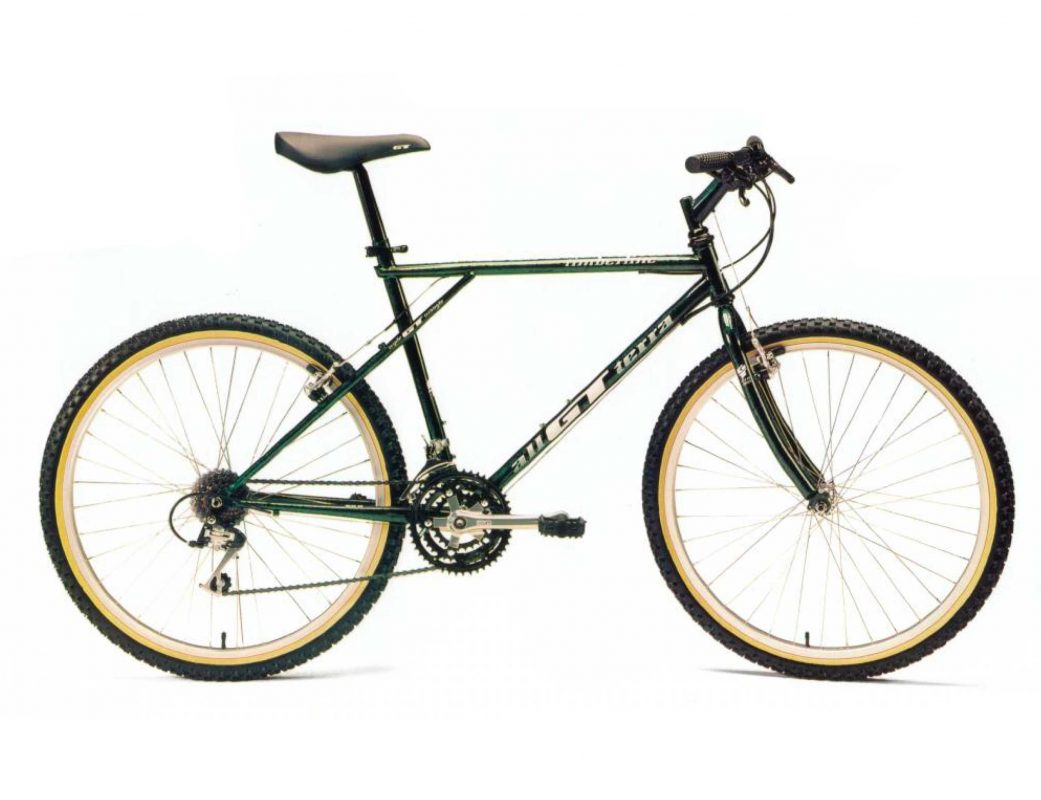

1993 GT Timberline
From causal jaunts to fun races with your friends, the Timberline is ready. Just choose the path and let your Timberline lead the way.
Description
The 1993 GT Timberline is a chromoly mountain bike built around a TIG pulse-welded Tange chromoly main tube frame featuring GT’s Triple Triangle design. The fork is a full chromoly unicrown unit with 1-1/8″ oversize steering tube and chisel-cut blades, pairing with an oversize sealed headset. Drivetrain components lean toward the upper-mid range, with Shimano Deore LX cranks, Deore XT 21-speed dual SIS derailleurs, and Deore DX Rapid-Fire Plus shifters handling gear changes across a 46/36/26 chainring setup.
Shimano Altus A20 cantilever brakes provide stopping power, while Araya AP-2 silver anodized alloy rims laced to 26×1.95 knobby tires handle trail duties. Six frame sizes accommodate a wide range of riders.
Technical specification
Geometry
- Sizes
- 14.5″, 16″, 18″,19”, 20″, 22”
Frame & Fork
- Frame material
- Chromoly
- Frame
- TIG Pulse welded, Tange chromoly main tubes; Triple Triangle Design
- Fork
- GT Full Chromoly unicrown with 1-1/8” Oversize Steer Tube and 1-1/8” chromoly blades with chisel cut
Drivetrain
- Crankset
- Shimano Deore LX with SG-X 46/36/26 Round Chainrings; Crank arms anatomically Sized
- Bottom bracket
- Shimano Cartridge
- Chain
- DID Super Lanner
- Freewheel
- Shimano Deore DX Cassette 12-28T
- Shifters
- Shimano new Deore DX Rapid-Fire Plus
- Pedals
- High impact nylon ATB with chromoly spindles
- Derailleurs
- Shimano Deore XT 21-Speed Dual SIS
Wheels
- Rims
- Araya New AP-2, alloy, 32h Silver Anodised
- Tires
- 26X1.95 knobby skinwalls
- Spokes
- Stainless Steel
- Hubs
- Shimano QR alloy with rear Cassette
Cockpit & contact
- Handlebar
- Flat, Bulged with 10 degree bend, Anatomically Sized
- Stem
- Gt Chromoly with internal cable routing, Anatomically Sized
- Grips
- Kraton Rubber
- Headset
- Oversize 1-1/8” sealed mech with Japanese balls
- Saddle
- GT Gel Lite with perforated emerald cover
- Seat post
- Alloy micro adjust, 300mm
- Seatpost clamp
- GT Alloy QR
- Colour
- Pearl Mist, Rain Forest Green
Brakes
- Brakes
- Shimano Altus A20 front and rear low profile alloy cantilevers with Multi-Condition Performance
- Brake levers
- Shimano New Altus A10
Extras
Chainstay Protecter
