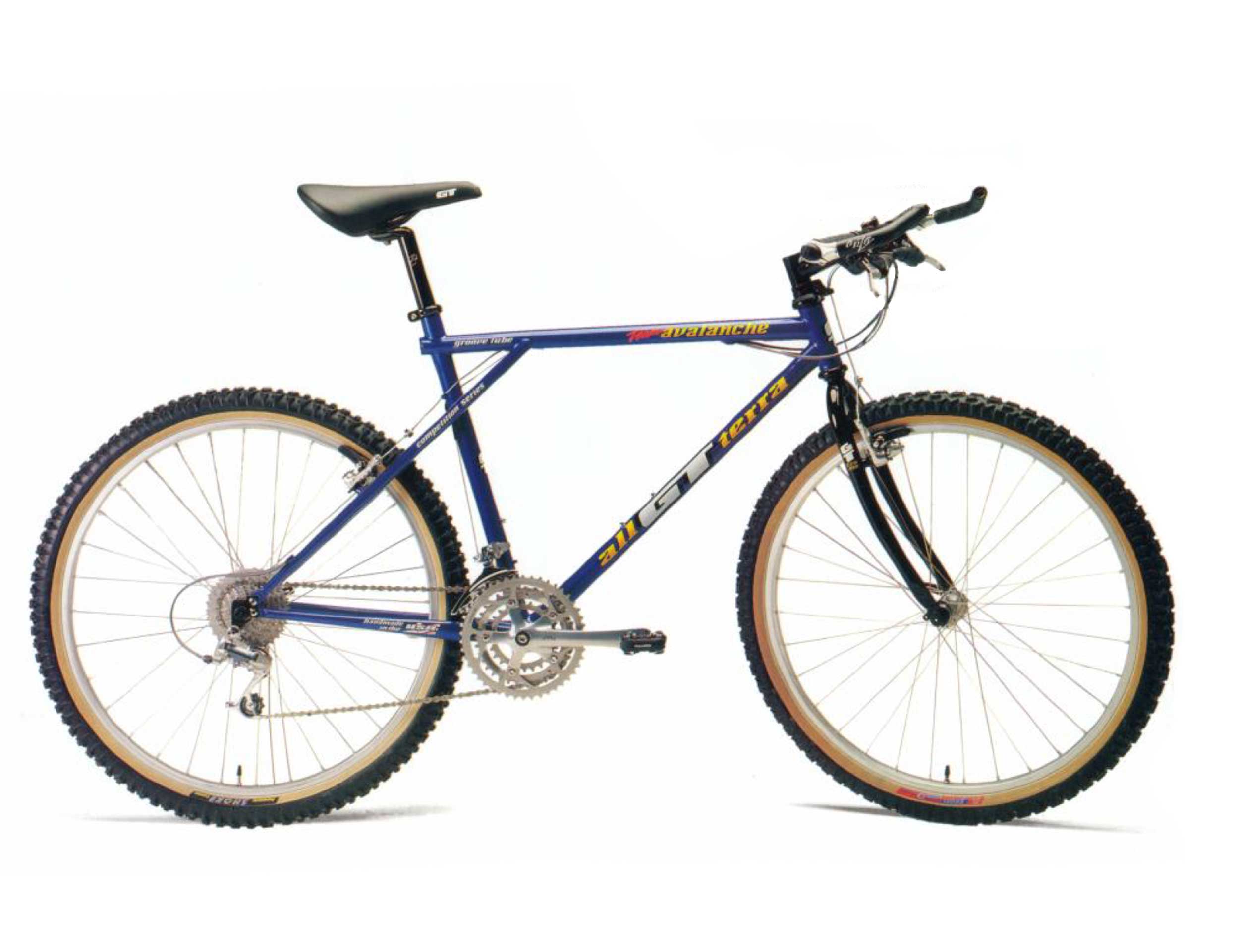

1993 GT Team Avalanche
The made in the USA Team Avalanche, with its light weight and dialled race geometry, is the ultimate in fine tuned performance.
Description
The 1993 GT Team Avalanche is a high-specification mountain bike built around a TIG pulse-welded True Temper GTX heat-treated double-butted chromoly frame, featuring GT’s Triple Triangle design and a replaceable alloy derailleur hanger. The fork is either GT’s own “Bologna Lite” triple-butted chromoly unit with a 1-1/8″ oversize steerer or a Rock Shox MAG21 suspension fork, depending on build.
Componentry is drawn entirely from Shimano’s XTR group, including Rapid-Fire Plus shifters, 24-speed dual SIS derailleurs, and low-profile cantilever brakes. Mavic M-231 rims and Panaracer 26×2.1 tires complete a build oriented toward serious trail and cross-country riding. The frame is offered in five sizes, from 14.5″ to 20″.
Technical specification
Geometry
- Sizes
- 14.5″, 16″, 18″,19”, 20″
Frame & Fork
- Frame material
- Aluminium, Chromoly
- Frame
- TIG Pulse-Welded, True Temper GTX Heat-Treated Double-Butted Chromoly Tubing; Triple Triangle Design; 73mm Bottom Bracket Shell; Replaceable Heat-Treated Alloy Derailleur Hanger
- Fork
- GT “Bologna Lite” Full Chromoly Triple Butted 27mm tapered Blades with 1-1/8” Oversize Chromoly Butted Steer Tube OR Rock Shox MAG21
Drivetrain
- Crankset
- Shimano XTR with SG-X 46/36/26 Round Chainrings; Crank arms anatomically Sized
- Bottom bracket
- Shimano XTR Cartridge
- Chain
- Shimano XTR
- Freewheel
- Shimano XTR Cassette 12-28T
- Shifters
- Shimano XTR Rapid-Fire Plus
- Pedals
- Shimano Clipless PD-M737
- Derailleurs
- Shimano XTR 24-Speed Dual SIS
Wheels
- Rims
- Mavic M-231 Alloy 32h Silver Anodised
- Tires
- Panaracer New Dart (front), New smoke (Rear) 26X2.1 with Lite Tubes and Ritchey Rim Tape
- Spokes
- DT Double Butted 15/16/15 Gauge, Stainless Steel with Alloy Nipples
- Hubs
- Shimano XTR with rear Cassette 32H, Sealed mech
Cockpit & contact
- Handlebar
- Gt “Super Light” Aluminium Alloy Bars, Anatomically Sized with Onza 1993 Alloy Cinch-Style L-Bend Bar-Ends
- Stem
- made in the USA GT Aluminium, Heat-Treated, Anatomically Sized
- Grips
- GT New Racing ATB,Kraton Rubber
- Headset
- Tioga Alloy “Aheadset”, 1-1/8” Oversize
- Saddle
- ATB Leather Racing with Titanium Rails
- Seat post
- GT New Alloy 350mm
- Seatpost clamp
- GT New Alloy with Titanium Allen Head Bolt
- Colour
- Blue Imron
Brakes
- Brakes
- Shimano XTR Low Profile Alloy Front and Rear Cantilevers with Multi-Condition Performance
- Brake levers
- Shimano XTR with Servo-wave Braking
Extras
Alloy Cable Hanger; Chainstay Protecter
