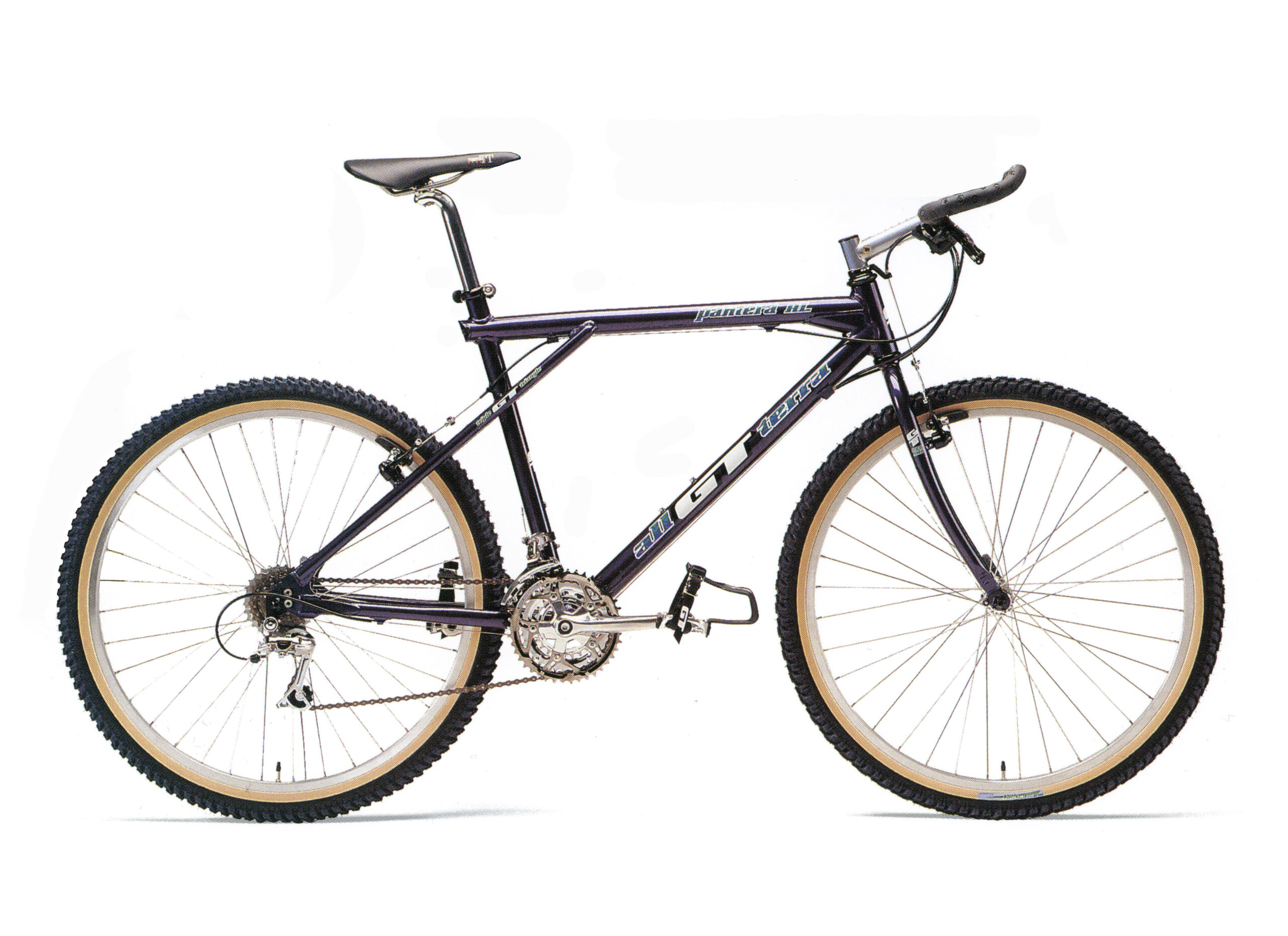

1994 GT Pantera AL
1994 GT Pantera AL is a 26-inch aluminum hardtail mountain bike built on 7005 double-butted Triple Triangle tubing with a full Shimano STX 21-speed groupset.
Description
The 1994 GT Pantera AL is an aluminum-framed mountain bike built around GT’s Triple Triangle design using 7005 double-butted, heat-treated aluminum with a replaceable alloy derailleur hanger. The fork is either GT’s own “Bologna Lite” chromoly unit with butted 27mm tapered blades or an optional Rock Shox Quadra 10, paired with a 1-1/8″ oversize Aheadset headset.
Drivetrain duties fall to a full Shimano STX groupset — 21-speed Rapid-Fire Plus shifters, STX derailleurs, and a 42/34/24 HyperDrive-C crankset. Weinmann BCX-3 alloy rims mount 26-inch Panaracer Hardcore Dart/Smoke tires. Four frame sizes accommodate a range of riders seeking a capable, trail-oriented 26-inch hardtail.
Technical specification
Geometry
- Sizes
- 14.5",16",18",20"
- Wheel size
- 26
Frame & Fork
- Frame material
- Aluminium
- Frame
- GT Triple Triangle Design, 7005 Double Butted Heat Treated Aluminum, 73mm Bottom Bracket Shell, Replaceable Alloy Derailleur Hanger
- Fork
- GT "Bologna Lite" with Butted 27mm Tapered Chromoly Blades and 1-1/8" Oversize Chromoly Butted Steer Tube OR Rock Shox Quadra 10
Drivetrain
- Crankset
- Shimano STX 42/34/24 HyperDrive-C with Anatomically Sized Arms
- Bottom bracket
- Shimano Cartridge
- Chain
- Shimano HG70
- Freewheel
- Shimano STX 11-28 7-Speed
- Shifters
- Shimano STX Rapid-Fire Plus 7-Speed Dual SIS
- Pedals
- One-Piece Alloy/GT Nylon, Anatomically Sized
- Derailleurs
- Shimano STX 21-Speed
Wheels
- Rims
- Weinmann BCX-3 Alloy 26x1.50 32H, Silver Anodized
- Tires
- Panaracer Hardcore Dart/Smoke 26x2.10, Dark Blue Skinwall
- Spokes
- 14G Stainless Steel
- Hubs
- Shimano STX QR Alloy with Rear Cassette, 32H
Cockpit & contact
- Handlebar
- GT Ergo Alloy with Multiple Hand Positions, Anatomically Sized
- Stem
- GT Flip Flop III Heat Treated Chromoly 1-1/8" Oversize "Aheadset" Type, Anatomically Sized
- Grips
- GT Long Type, Kraton
- Headset
- DiaCompe 1-1/8" Oversize "Aheadset", Sealed Mech
- Saddle
- GT ATB Racing, Imitation Leather with Hollow Chromoly Rails
- Seat post
- Alloy Micro-Adjust
- Seatpost clamp
- GT Alloy with Alloy/Stainless Steel QR
- Colour
- Midnight Blue, Pearl Silver
Brakes
- Brakes
- Shimano STX Cantilevers
- Brake levers
- Shimano STX
