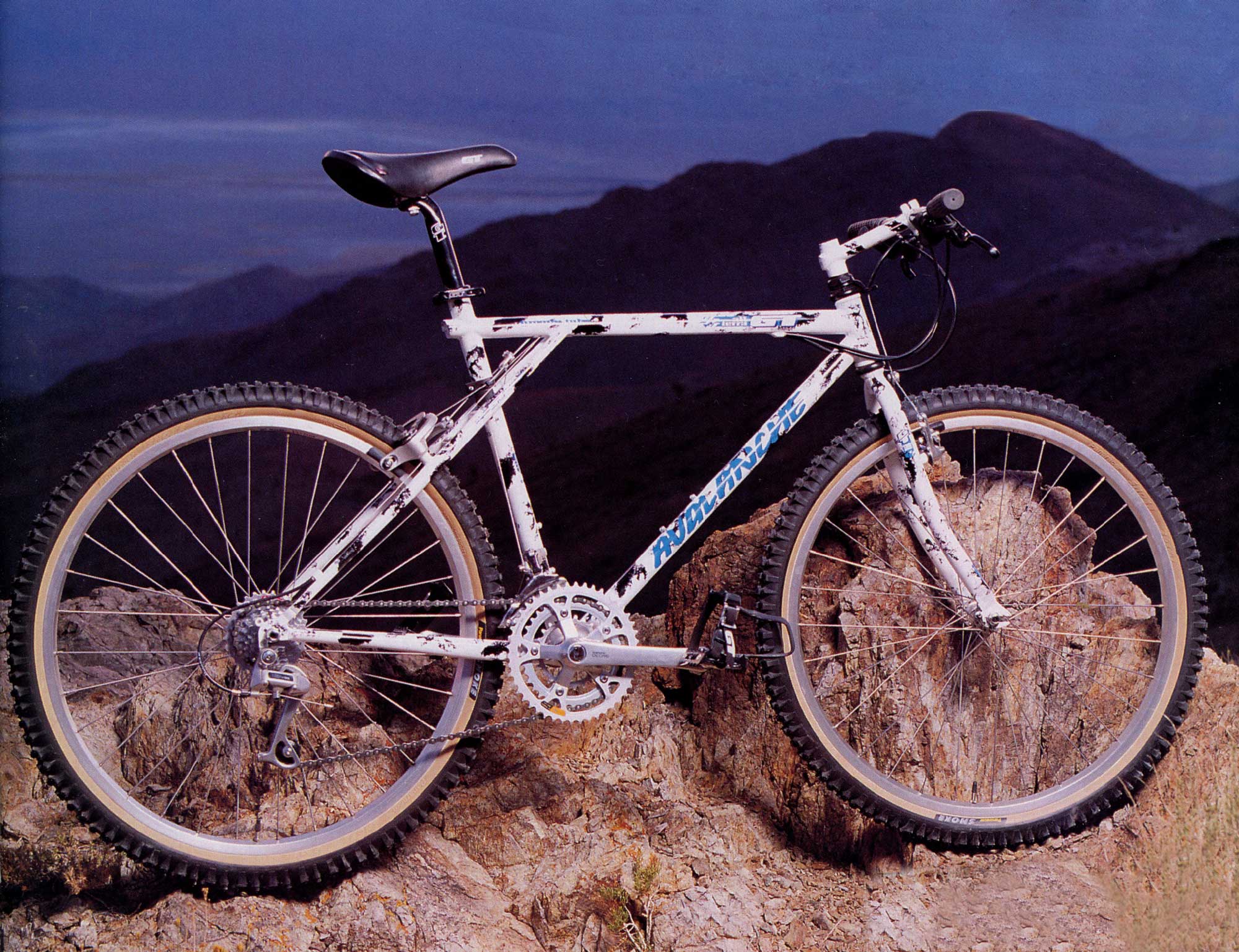

1992 GT Avalanche
The tradition continues. For 1992, the renowned GT Avalanche returns ahead of Its class. With an endless list of GT innovations, the Avalanche lets you customise your ride to the terrain.
Description
The 1992 GT Avalanche is a mountain bike built around GT’s Triple Triangle frame design, combining True Temper GTX double-butted chromoly tubing with an oversize 1-1/8″ reinforced head tube and a 73mm bottom bracket shell. The fork is either a GT 3D unicrown in triple-butted chromoly or an optional Rock Shox Mag20 with dial adjust. Drivetrain duties fall to a Shimano Deore DX/XT mix, pairing Rapid-Fire Plus STI shifters with DX cranks carrying a 46/36/24T chainring set.
Rolling stock consists of Ritchey Vantage Expert 26″ silver-anodised rims laced to 32 holes and wrapped in Panaracer Smoke 2.1″ tires. Five frame sizes, from 14.5″ to 22″, accommodate a wide range of riders.
Technical specification
Geometry
- Sizes
- 14.5", 16", 18", 20", 22"
Frame & Fork
- Frame material
- Aluminium, Chromoly
- Frame
- GT Triple Triangle design, True Temper GTX double butted chromoly tubing; 1-1/8" oversize reinforced head tube; Groove tube top tube cable routing; external butted seat tube; 19mm double tapered seat stays; 73mm bottom bracket shell; new vertical forged dropouts with alloy derailleur hanger
- Fork
- GT 3D unicrown with 1-1/8" oversize butted chromoly steer tube, 27mm triple butted chromoly blades, investment cast dropouts with adjustable offset OR Rock Shox Mag20 with dial adjust
Drivetrain
- Crankset
- Shimano Deore DX STI SuperGlide round chainrings 46/36/24T; crank arms anatomically sized
- Bottom bracket
- Shimano cartridge type
- Chain
- Shimano Deore DX
- Freewheel
- Shimano Deore DX HyperGlide Cassette, 12-28T, 7 speed
- Shifters
- Shimano ST-M095 Deore XT Rapid-Fire plus STI
- Derailleurs
- Shimano Deore DX (top pull front)
Wheels
- Rims
- Ritchey Vantage Expert 26x1.5 silver anodised, 32H
- Tires
- Panaracer Smoke 26x2.1
- Spokes
- 14G stainless steel
- Hubs
- Shimano Deore DX QR with rear cassette, 32H
Cockpit & contact
- Handlebar
- GT Superlight alloy, anodised anatomically sized
- Stem
- GT Flip-Flop heat treated chromoly/alloy with oversize shaft, anatomically sized with GT alloy cable hanger
- Grips
- GT design anatomical
- Headset
- Tioga 1-1/8" oversize, triple sealed mech with GT thread & set alloy locknut
- Saddle
- GT competition leather
- Seat post
- GT heat treated alloy 350mm (300mm for 14.5" frame)
- Seatpost clamp
- GT heat treated alloy clamp and QR lever
- Colour
- Beja Blue, Dry Ice
Brakes
- Brakes
- Shimano Deore DX SLR low profile front cantilever and rear U-brake with FlexGuard and GT cable crosser
- Brake levers
- Shimano ST-M095 Deore XT 2-finger with servo wave breaking
Extras
Chain stay protector
