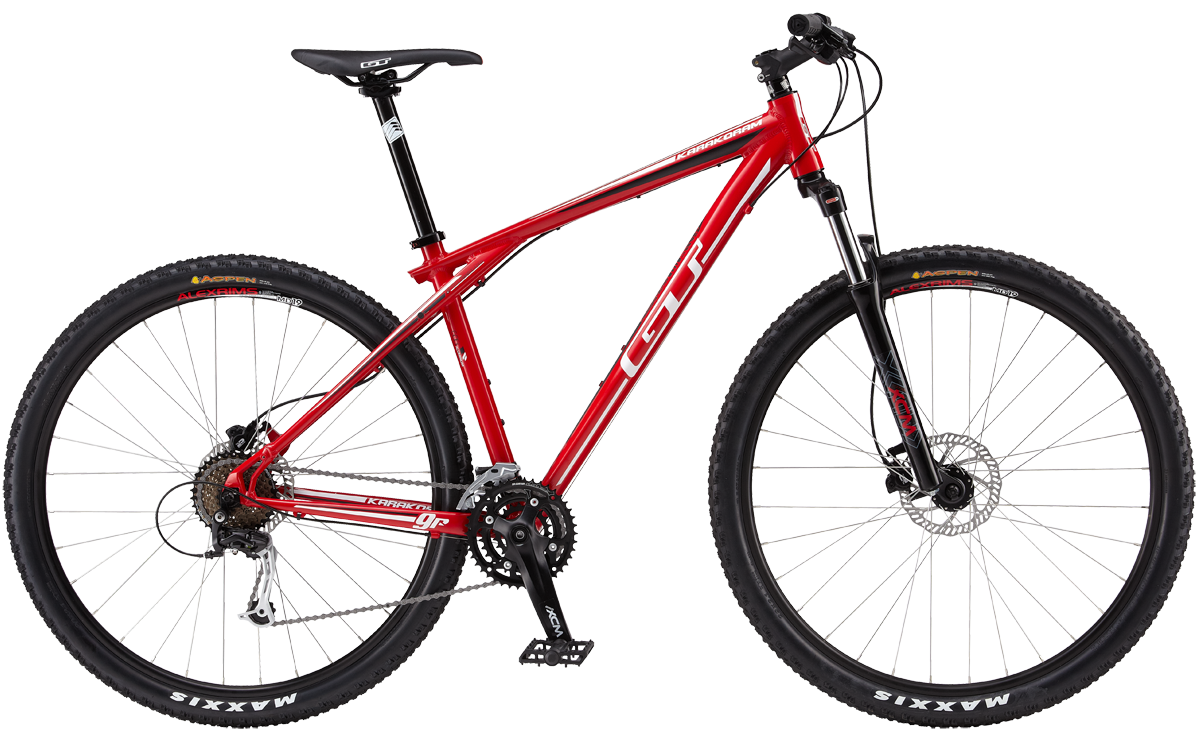

2013 GT Karakoram 3 0 Hydr
2013 GT Karakoram 3.0 Hydr is a 29er mountain bike built around a hydroformed 6061 T6 aluminum Triple Triangle frame with hydraulic disc brakes and Shimano Alivio shifting.
Description
This bike respects your skills. Steep descents, rocky climbs, and jeering friends can make any ride feel like a challenge, both to your skills and to your ego. Fortunately you perform under pressure, and you’re on a Karakoram, which is just as relaxed in a crux as you are. Responsive, indestructible, and smooth on the trail, it’s all the bike you need to show your buddies the skills it takes to be a bad ass.
Technical specification
Geometry
- Sizes
- S, M, L, XL
Frame & Fork
- Frame
- NEW 29" Hydroformed 6061 T6™ Aluminum Frame, w/ Triple Triangle™, Replaceable Derailleur Hanger, Disc Brake Mounts, and Zerostack 1 1/8" Head Tube
- Fork
- SR Suntour XCM-MLO w/ 100mm Travel, 29", Steel Stanchions, Aluminum Leg, Post Mount Disc Brake, Mechanical Lockout, QR
Drivetrain
- Crankset
- SR Suntour XCM-T414, 44/32/22T
- Bottom bracket
- Tange Sealed
- Chain
- KMC Z99
- Freewheel
- Shimano CS-HG20-9, 11-34T, 9-Speed Cassette
- Shifters
- Shimano Alivio, Sl-M430, Rapid Fire
- Pedals
- GT Slim Line Flat Pedal
- Front derailleur
- Shimano Acera, FD-M390
- Rear derailleur
- Shimano, Alivio, RD-M430
Wheels
- Rims
- Alex TD19, Double Wall, 32H
- Tires
- Maxxis Aspen 29X2.10"
- Spokes
- 14G Stainless
- Hubs
- All Terra Alloy Disc, W/ Quick Release
- Rear hub
- All Terra Alloy Cassette Disc, W/ Quick Release
Cockpit & contact
- Handlebar
- All Terra 6061 Aluminum Flat Top Riser, 690mm Width, 15mm Rise, 31.8mm Clamp
- Stem
- All Terra 1 1/8" Threadless, 3D Forged, 4-Bolt W/ CNC Face Plate, 5° Rise, 31.8mm Clamp
- Grips
- GT Slim Line Racing Wing W/ Waffle
- Headset
- Tange Seiki 1 1/8" Threadless, Zerostack
- Saddle
- All Terra Tacoma
- Seat post
- All Terra Alloy Micro-Adjust, 30.9mm
- Seatpost clamp
- All Terra Alloy QR
- Colour
- Red, White
Brakes
- Brakes
- Tektro Htc-300 Hydraulic Disc, W/ 160mm Rotor
- Brake levers
- Tektro HTC-300 Hydraulic
