2013 GT Karakoram 4 0 Mech

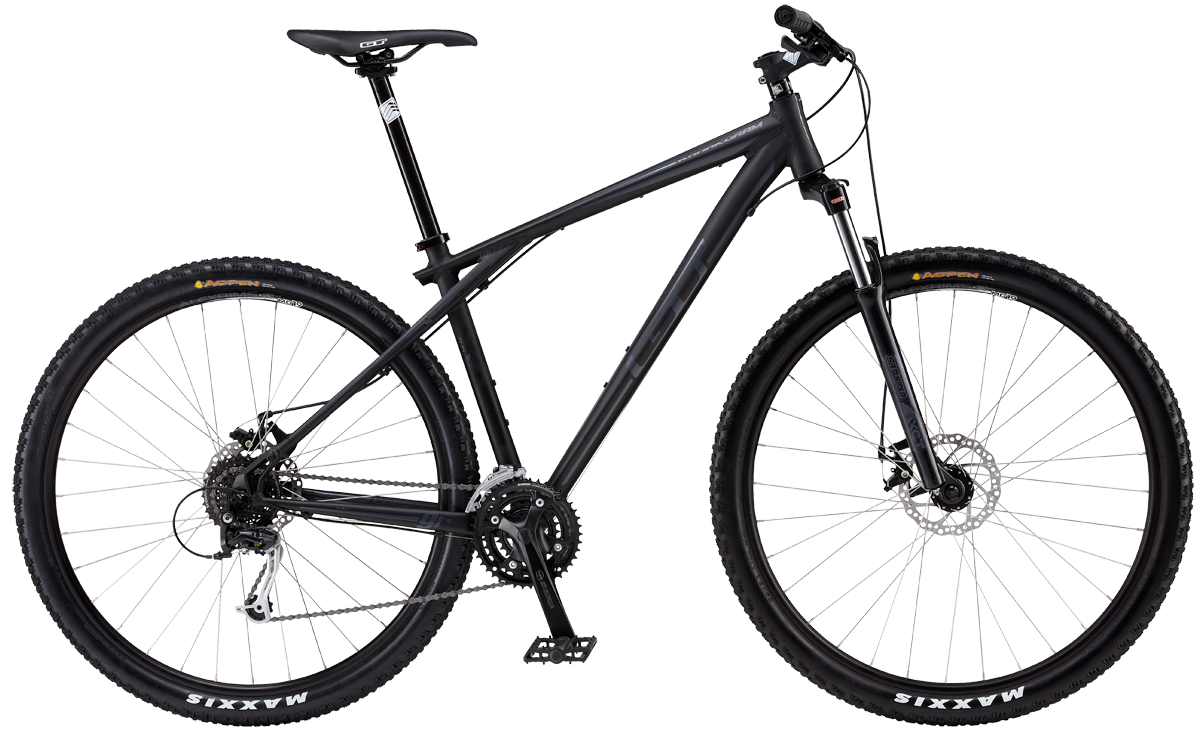

2013 GT Karakoram 4.0 Mech is a 29er hydroformed 6061 T6 aluminum mountain bike with a 100mm SR Suntour fork and Shimano Rapid Fire shifting.
Description
This bike respects your skills. Steep descents, rocky climbs, and jeering friends can make any ride feel like a challenge, both to your skills and to your ego. Fortunately you perform under pressure, and you’re on a Karakoram, which is just as relaxed in a crux as you are. Responsive, indestructible, and smooth on the trail, it’s all the bike you need to show your buddies the skills it takes to be a bad ass.
Technical specification
Geometry
- Sizes
- S, M, L, XL
Frame & Fork
- Frame
- NEW 29" Hydroformed 6061 T6™ Aluminum Frame, w/ Triple Triangle™, Replaceable Derailleur Hanger, Disc Brake Mounts, and Zerostack 1 1/8" Head Tube
- Fork
- SR Suntour XCT-MLO w/ 100mm Travel, 29", Steel Stanchions, Aluminum Leg, Post Mount Disc Brake, Mechanical Lockout, QR
Drivetrain
- Crankset
- SR Suntour Nex-T102-Pb, 42/34/24T
- Bottom bracket
- Tange Sealed
- Chain
- KMC Z72
- Freewheel
- Shimano CS-HG31-8, 11-32T, 8-Speed Cassette
- Shifters
- Shimano Sl-M310, Rapid Fire
- Pedals
- GT Slim Line Flat Pedal
- Front derailleur
- Shimano Altus, FD-M190
- Rear derailleur
- Shimano, Alivio, RD-M430
Wheels
- Rims
- Alex TD19, Double Wall, 32H
- Tires
- Maxxis Aspen 29X2.10"
- Spokes
- 14G Stainless
- Hubs
- All Terra Alloy Disc, W/ Quick Release
- Rear hub
- All Terra Alloy Cassette Disc, W/ Quick Release
Cockpit & contact
- Handlebar
- All Terra 6061 Aluminum Riser, 685mm Width, 30mm Rise, 31.8mm Clamp
- Stem
- All Terra 1 1/8" Threadless, 3D Forged, 4-Bolt W/ CNC Face Plate, 5° Rise, 31.8mm Clamp
- Grips
- GT Slim Line Racing Wing W/ Waffle
- Headset
- Tange Seiki 1 1/8" Threadless, Zerostack
- Saddle
- All Terra Tacoma
- Seat post
- All Terra Alloy Micro-Adjust, 30.9mm
- Seatpost clamp
- All Terra Alloy QR
- Colour
- Black, Silver
Brakes
- Brakes
- Tektro Novela Cable Disc, W/ 160mm Rotor
- Brake levers
- Tektro
