Description

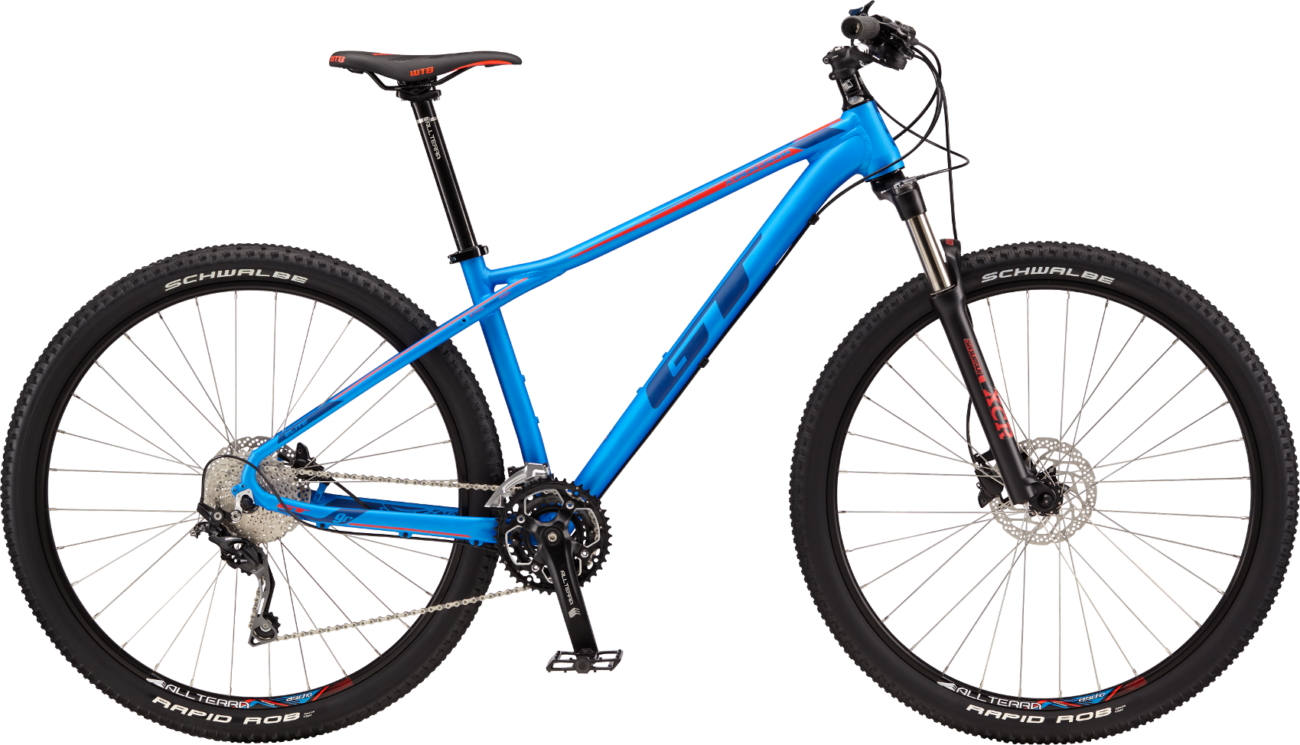

The Karakoram is the perfect 29er for the new rider looking to get a capable trail bike. The Karakoram climbs easily and accelerates well; at its price point, you’d be hard pressed to find a better performing 29er.
+ SR Suntour XCR 32 RL Fork
Geometry
Technical specification
Geometry
- Sizes
- S, M, L, XL
Frame & Fork
- Frame
- All New 6061 T6 Aluminum Frame, w/ Triple Triangle?, Replaceable Derailleur Hanger, Disc Brake Mounts, and Zerostack tapered Head Tube, 29" Design
- Fork
- SR Suntour XCR 32 RL DS w/ 100mm Travel, Magnesium Lowers, 32mm Cr-mo Steel Uppers, w/ Post Mount Disc Brake, W/ Remote Lockout, W/Rebound Adjust, For 29"
Drivetrain
- Crankset
- All-Terra T-651, 42/32/24T
- Bottom bracket
- Cartridge Sealed
- Chain
- KMC X10
- Freewheel
- Sunrace CS-MS1, 11-36T, 10-Speed
- Shifters
- Shimano Deore
- Pedals
- GT Slim Line Flat Pedal, Cast Alloy
- Front derailleur
- Shimano Deore
- Rear derailleur
- Deore Shadow
Wheels
- Rims
- All Terra Double Wall, 32H 29", disc specific
- Tires
- (F&R;) Schwalbe Rapid Ron 29x2.25", w/ K-Guard
- Hubs
- All Terra Center Lock, QR (F) Alloy Disc, (R) Alloy Cassette Disc
Cockpit & contact
- Handlebar
- All Terra Riser Bar, Double Butted, 710mm Width, 15mm Rise, 31.8mm Clamp
- Stem
- All Terra 1 1/8" Threadless, 3D Forged, 4-Bolt W/ CNC Face Plate, 7? Rise, 31.8mm Clamp
- Grips
- GT Statement
- Headset
- Integrated seal bearing, 1-1/8? Upper + 1-1/2? Lower
- Saddle
- All Terra MTB
- Seat post
- All Terra Alloy Micro-Adjust, 30.9mm
- Seatpost clamp
- All Terra Alloy QR
Brakes
- Brakes
- (F&R;) Shimano Hydraulic Disc, 160mm Rotor
- Brake levers
- Shimano Hydraulic Disc Brake Lever
Suspension
- Rear shock
- N/A
