1993 GT RTS 1
A well thought out and brutally tested idea. RTS 1. Would you ride anything else?
Description

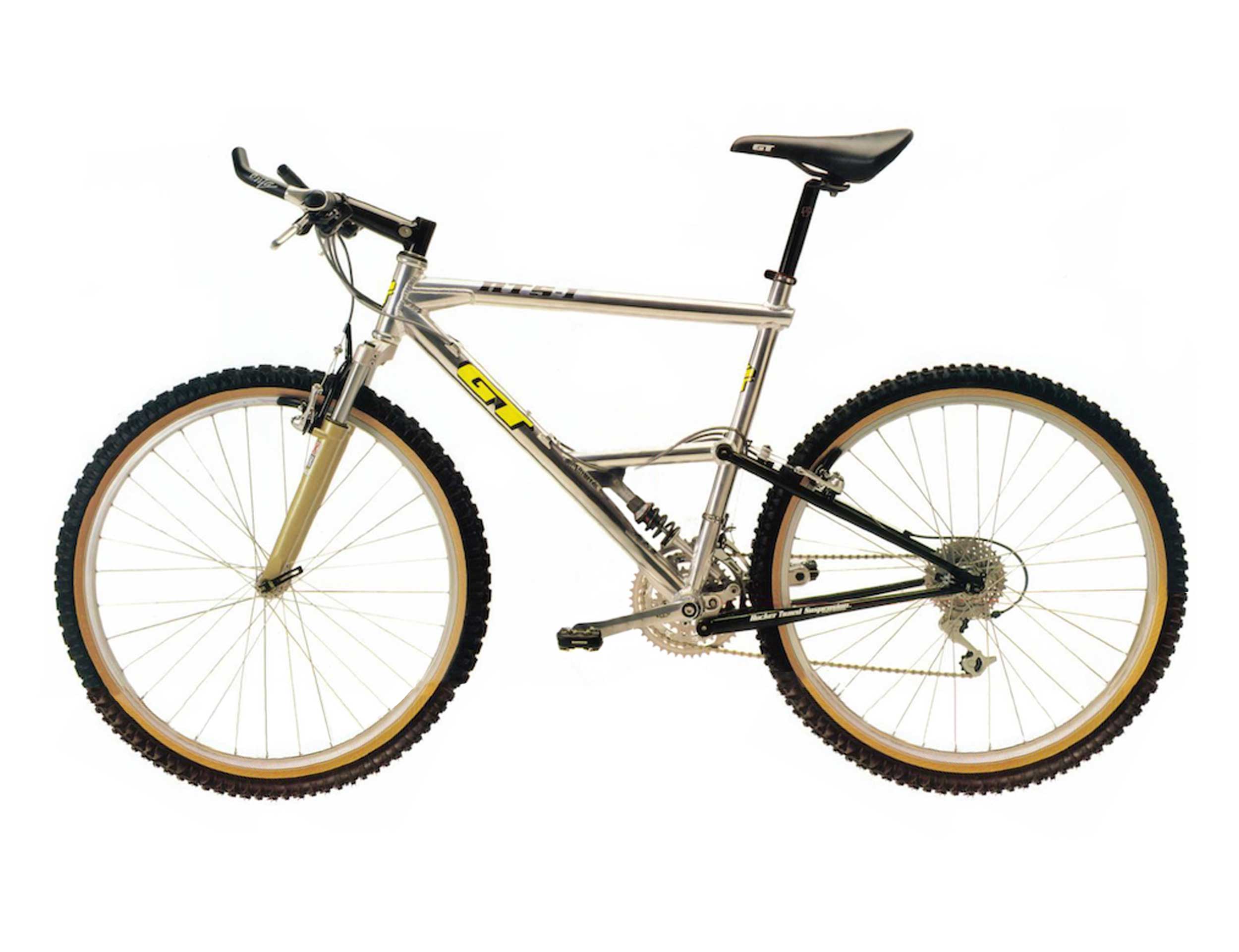

The 1993 GT RTS 1 is a full-suspension mountain bike built around a TIG pulse-welded 6061-T6 aluminium front triangle paired with a True Temper chromoly rear triangle, with both sections heat-treated and assembled in the USA. Suspension duties are handled by a USA-made Noleen adjustable coil-over unit at the rear and a RockShox New MAG21 fork up front.
The drivetrain runs a complete Shimano XTR groupset — 24-speed with Rapid-Fire Plus shifters, anatomically sized crank arms, and SG-X chainrings — while Mavic M-231 rims and Panaracer tires complete the rolling package. An ATB leather saddle with titanium rails reflects the premium specification throughout.
Technical specification
Geometry
- Sizes
- 14.5″, 16″, 18″, 20″
Frame & Fork
- Frame material
- Aluminium, Chromoly
- Frame
- Handmade in the USA. TIG Pulse-welded, Aluminium Alloy 6061-T6 Heat-Treated Front Triangle with True Temper Heat-Treated even Walled, Tapered, Chromoly Rear Triangle; Replaceable Heat-Treated Alloy Derailleur Hanger; USA made Noleen Adjustable Oil Dampened Coil-over shox
- Fork
- Rock Shox New MAG21
Drivetrain
- Crankset
- Shimano XTR with SG-X 46/36/26 Round Chainrings; Crank arms anatomically Sized
- Bottom bracket
- Shimano XTR Cartridge
- Chain
- Shimano XTR
- Freewheel
- Shimano XTR Cassette 12-28T
- Shifters
- Shimano XTR Rapid-Fire Plus
- Pedals
- Shimano Clipless PD-M737
- Derailleurs
- Shimano XTR 24-Speed Dual SIS
Wheels
- Rims
- Mavic M-231 Alloy 32h Silver Anodised
- Tires
- Panaracer New Dart (front), New smoke (Rear) 26X2.1 with Lite Tubes and Ritchey Rim Tape
- Spokes
- DT Double Butted 15/16/15 Gauge, Stainless Steel with Alloy Nipples
- Hubs
- Shimano XTR with rear Cassette 32H, Sealed mech
Cockpit & contact
- Handlebar
- Gt “Super Light” Aluminum Alloy Bars, Anatomically Sized with Onza 1993 Alloy Cinch-Style L-Bend Bar-Ends
- Stem
- made in the USA GT Aluminium, Heat-Treated, Anatomically Sized
- Grips
- GT New Racing ATB,Kraton Rubber
- Headset
- Tioga Alloy “Aheadset”, 1-1/8” Oversize
- Saddle
- ATB Leather Racing with Titanium Rails
- Seat post
- GT New Alloy 350mm
- Seatpost clamp
- GT New Alloy with Titanium Allen Head Bolt
- Colour
- Ball Burnished with Black Stays
Brakes
- Brakes
- Shimano XTR Low Profile Alloy Front and Rear Cantilevers with Multi-Condition Performance
- Brake levers
- Shimano XTR with Servo-wave Braking
Extras
chain stay Protecter
