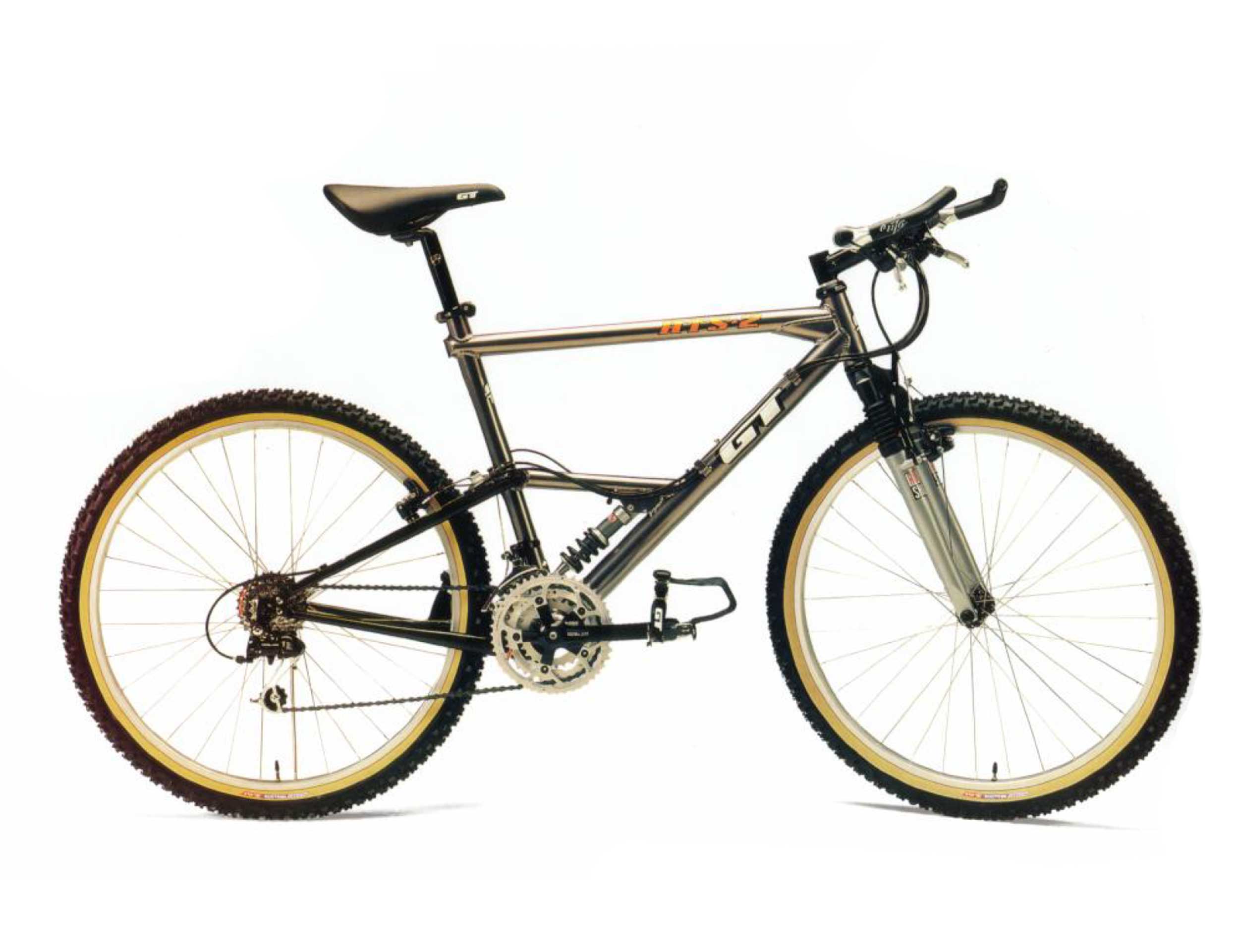

1993 GT RTS 2
Engineered to take the beating out of a hard ride, the RTS-2 takes suspension bike performance to a higher ground. Its powerful frame utilises the same unique rocker arm suspension and coil-over-shock system s the RTS-1, allowing the RTS-2 to climb as well as it descends.
Description
The 1993 GT RTS 2 is a full-suspension mountain bike built around a 7005 aluminium alloy front triangle, heat-treated and TIG pulse-welded, paired with a Tange chromoly rear triangle. Suspension duties are handled by a USA-made Noleen adjustable coil-over unit at the rear pivot and a RockShox Quadra fork up front. The drivetrain runs Shimano Deore LX throughout, including Rapid-Fire Plus shifters, 21-speed dual SIS derailleurs, and an LX crankset with SG-X 46/36/26 chainrings.
Mavic M-231 32-hole rims wrapped in Ritchey Z-Max 26×2.1 tires round out a capable trail build, while the 1-1/8″ Tioga Aheadset reflects the oversize steering standards gaining traction in the early 1990s.
Technical specification
Geometry
- Sizes
- 14.5″, 16″, 18″,19”, 20″
Frame & Fork
- Frame material
- Aluminium, Chromoly
- Frame
- Aluminium Alloy 7005 material, Heat Treated, TIG pulse welded front triangle with Tange chromoly rear triangle; Replaceable Heat-Treated Alloy Derailleur Hanger. USA made Noleen adjustable oil dampened coil over Shox and USA made main pivot spherical bearing;
- Fork
- Rock Shox Quadra
Drivetrain
- Crankset
- Shimano LX with SG-X 46/36/26 Round Chainrings; Crank arms anatomically Sized
- Bottom bracket
- Shimano Cartridge
- Chain
- DID Supershift
- Freewheel
- Shimano Deore LX Cassette 12-28T
- Shifters
- Shimano Deore LX Rapid-Fire Plus
- Pedals
- Tioga Surefoot VI
- Derailleurs
- Shimano Deore LX 21-Speed Dual SIS
Wheels
- Rims
- Mavic M-231 Alloy 32h Silver Anodised
- Tires
- Ritchey Z-Max 26X2.1 with Lite Tubes
- Spokes
- Stainless Steel
- Hubs
- Shimano new Deore LX QR with rear Cassette 32H, Sealed mech
Cockpit & contact
- Handlebar
- Gt Alloy Bars, Anatomically Sized with Onza 1993 Alloy Cinch-Style L-Bend Bar-Ends
- Stem
- Gt Flip Flop III, Heat-Treated Thin Wall Chromoly, Anatomically Sized
- Grips
- GT New Racing ATB, Kraton Rubber
- Headset
- Tioga Alloy “Aheadset”, 1-1/8” Oversize
- Saddle
- GT new ATB leather racing with Hollow Chromoly Rails
- Seat post
- GT New Alloy 350mm
- Seatpost clamp
- GT New Alloy with alloy/stainless steel QR
- Colour
- Titanium Front with Gloss Black Stays
Brakes
- Brakes
- Shimano New Deore LX Low Profile Alloy Front and Rear Cantilevers with Multi-Condition Performance
- Brake levers
- Shimano Deore LX
Extras
Chainstay Protecter
