2016 GT Avalanche Elite

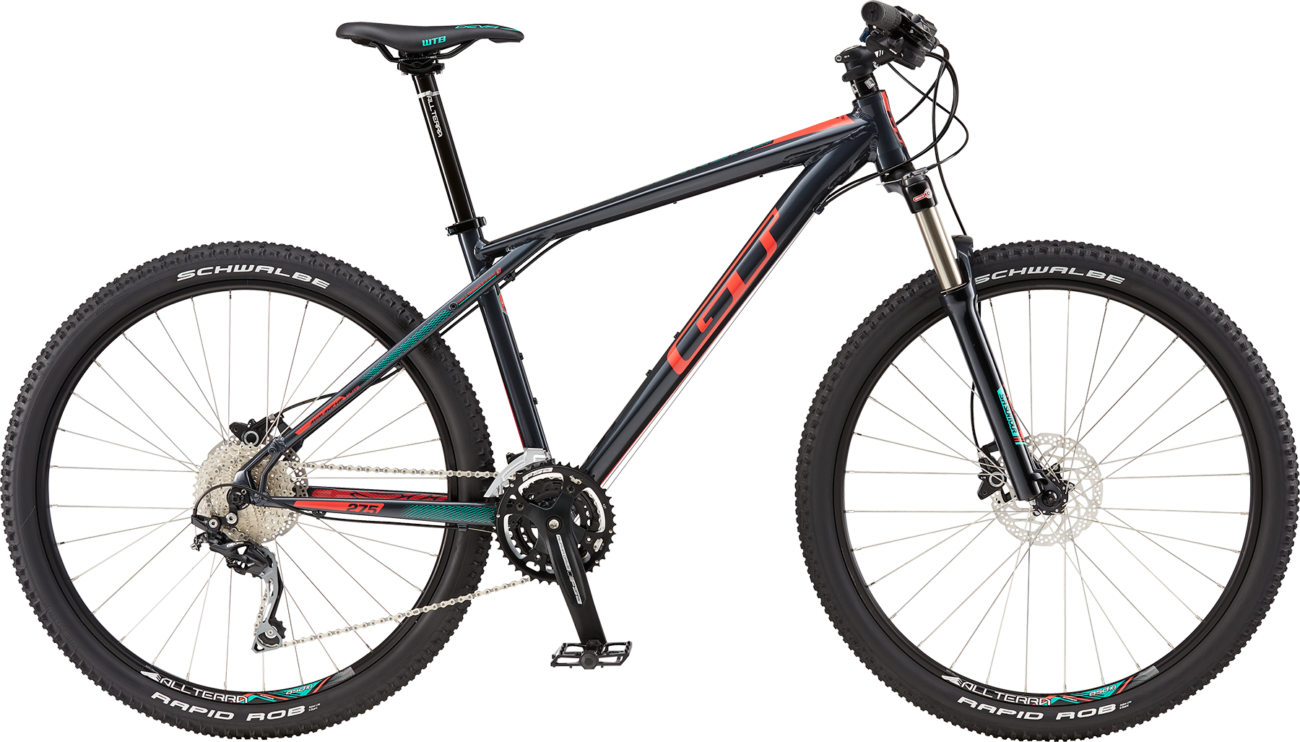

2016 GT Avalanche Elite is a 27.5 mountain bike with a hydroformed butted aluminum Triple Triangle frame, Shimano Deore shifting, and hydraulic disc brakes.
Description
Learn to love the mountains.
Build your skills and take on new trails with the Avalanche GTw. The butted aluminum frame is the perfect platform to upgrade with your experience, and the front center positioning offers a commanding view of the dirt you’re eating up on the way down. High on performance and low on cost, it’s an incredible way to learn to love mountain biking.
Technical specification
Geometry
- Sizes
- XXS, XS, S, M, L
Frame & Fork
- Frame
- Hydroformed & Butted Speed Metalﾙ Aluminum (TT/DT) Frame, w/ Triple Triangleﾙ, Replaceable Derailleur Hanger, Disc Brake Mounts, and Zerostack 1 1/8" Head Tube, 27.5 Design
- Fork
- SR Suntour XCR 32 RL DS w/ 100mm Travel, Magnesium Lowers, 32mm Cr-mo Steel Uppers, w/ Post Mount Disc Brake, W/ Remote Lockout, W/Rebound Adjust, For 27.5
Drivetrain
- Crankset
- FSA CK-725STT, 42/32/24T
- Bottom bracket
- Tange Sealed
- Chain
- KMC X10
- Freewheel
- Sunrace CS-MS1, 11-36T, 10-Speed
- Shifters
- Shimano Deore, SL-M610
- Pedals
- GT Slim Line Flat Pedal, Cast Alloy
- Front derailleur
- Shimano Deore FD-M610
- Rear derailleur
- Shimano Deore Shadow, RD-M610-SGS
Wheels
- Rims
- Alex ASD10-27.5 Double Wall, 32H 27.5, disc specific
- Tires
- Schwalbe Rapid Rob 27.5X2.25" with K-Guard
- Spokes
- 14G Stainless
- Hubs
- F: All Terra Alloy Disc, W/ Quick Release, Center Lock; R: All Terra Alloy Cassette Disc, W/ Quick Release, Center Lock
Cockpit & contact
- Handlebar
- All Terra Riser, Butted, 710mm Width, 15mm Rise, 31.8mm Clamp
- Stem
- All Terra 1 1/8" Threadless, 3D Forged, 4-Bolt W/ CNC Face Plate, 6ﾰ Rise, 31.8mm Clamp
- Grips
- GT Women's
- Headset
- Kore 1B-1 1 1/8" Threadless, Zerostack
- Saddle
- WTB Deva Sport
- Seat post
- All Terra Alloy Micro-Adjust, 30.9mm
- Seatpost clamp
- All Terra Alloy QR
Brakes
- Brakes
- Shimano BR-M355, Hydraulic Disc, W/ 160mm Rotor SM-RT30
- Brake levers
- Shimano Hydraulic Disc Brake Lever
